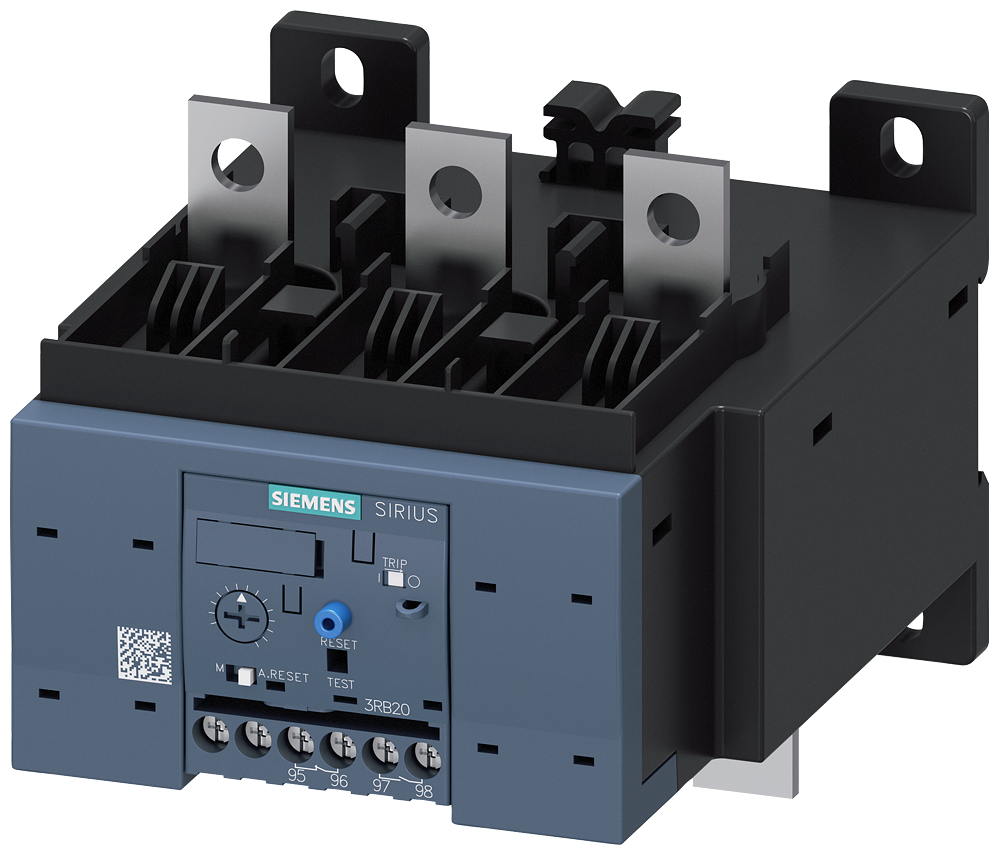

Siemens 3RB2056-1FC2 1000 VAC 50 to 200 Amp 3-Pole 1NO 1NC Electronic Solid State Overload Relay

Product Description

The Siemens 3RB2056-1FC2 is an electronic solid state overload relay designed to protect motors. This relay operates at a voltage of up to 1000 VAC and can manage amperage from fifty to two hundred amps. With its compact design, it's suitable for mounting on main circuit connection bars. It provides both manual and automatic reset options, making it versatile for various applications.

• Adjustable from fifty to two hundred amps
• Includes 1 NO and 1 NC contact configuration
• Suitable for use in temperatures ranging from -25 to 60 degrees Celsius

Product Highlights

This overload relay offers reliable motor protection with adjustable settings and easy installation.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens

Technical Specifications

• Catalog Number: 3RB2056-1FC2
• Class: Class 10
• Width: 5.320 inches
• Height: 6.78 inches
• Length: 5.75 inches
• Weight: 2.250 pounds
• Amperage: 50-200 Amp
• Terminal Type: Screw
• Connection Type: Rail Connection
• Country of Origin: Germany
• Temperature Rating: -25 to 60 degrees C
