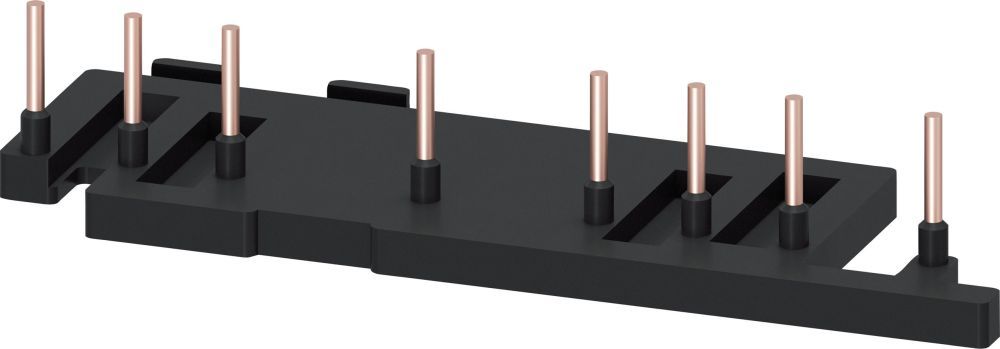

Siemens 3RA29133EA1 Wiring Module Load

Product Description

The SIEMENS 3RA29133EA1 is a wiring module designed for load-side connections in industrial motor control assemblies. It simplifies field wiring by providing a dedicated termination point between the contactor or starter and the load, reducing wiring complexity and the potential for connection errors. The module ships one per pack and weighs 0.031 pounds, making it a compact, lightweight component suited to tight control panel layouts. Electrical and controls technicians working on motor starter assemblies will encounter this type of accessory when configuring or retrofitting SIEMENS 3RA-series starter systems.

This wiring module is used in industrial and commercial electrical control panels where SIEMENS 3RA-series devices are installed. Typical applications include motor starter assemblies in manufacturing, HVAC plant rooms, pump stations, and process control environments. The module provides a clean, organized wiring interface on the load side of the starter, which is especially useful during initial panel build-out or when replacing individual starter components during maintenance.

Key Features

• Dedicated load-side wiring termination for SIEMENS 3RA-series motor starters
• Compact form factor fits standard control panel layouts
• Reduces field wiring complexity and connection errors
• Lightweight at 0.031 pounds for easy handling during installation
• Packaged individually, one per pack

Compatibility

Designed as an OEM-style wiring accessory for SIEMENS 3RA-series motor starter and contactor assemblies. Consult the SIEMENS 3RA product documentation to confirm fitment with specific starter configurations.

Installation Notes

Installation should be performed by a licensed electrician familiar with industrial motor control wiring and applicable NEC requirements. De-energize the panel and verify absence of voltage before handling any wiring module or starter component. Follow the SIEMENS 3RA-series wiring diagrams for correct load-side termination sequence. Do not over-tighten terminal connections beyond the torque specifications listed in the manufacturer documentation.

Technical Specifications

• Weight: 0.031 pounds
• Length: 4.154 inches
• Width: 1.791 inches
• Height: 1.949 inches
• Pack Quantity: 1
• UPC: 66264390468

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RA29133EA1
