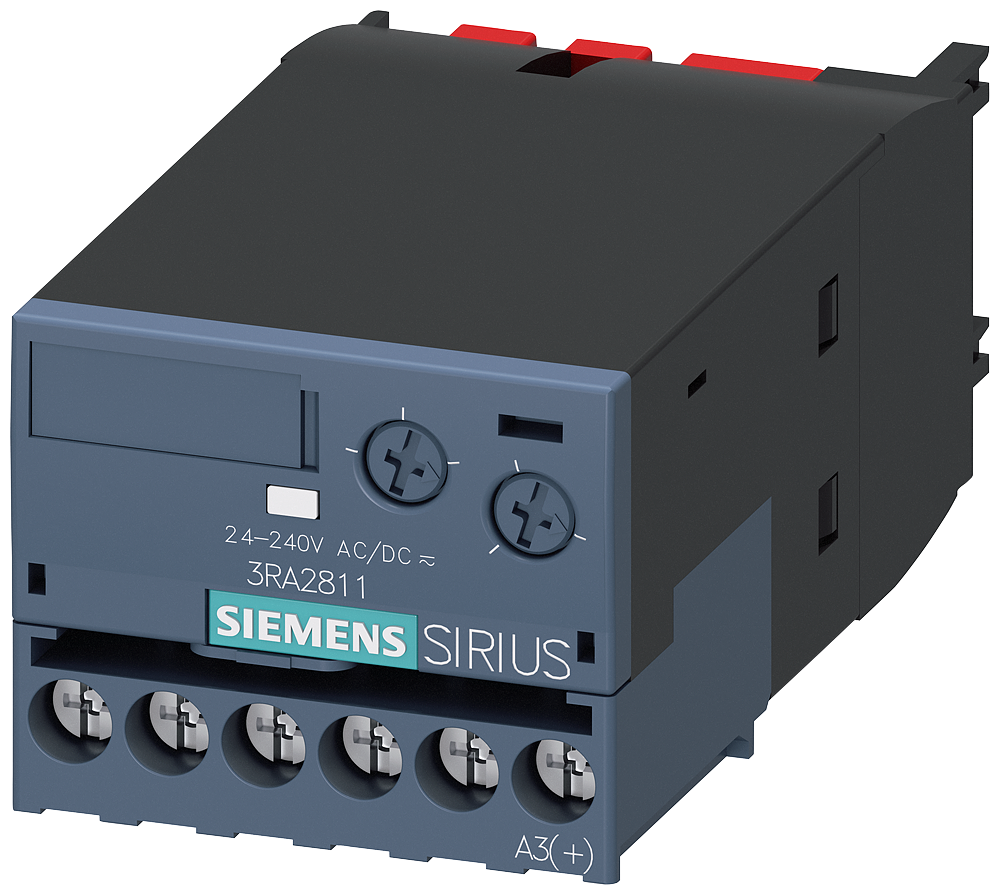

Siemens 3RA2811-1CW10 Timing Relay 24-240V AC/DC .05-100s

Product Description

The Siemens 3RA2811-1CW10 Timing Relay is a solid-state time relay with on-delay and semiconductor output. It operates within a voltage range of 24 to 240V AC/DC and offers a timing range from 0.05 to 100 seconds. Designed for use with 3RT2 contactors, it features screw terminals and mounting on the front of contactors for ease of use.

• Voltage range: 24 to 240V AC/DC
• Time range: 0.05 to 100 seconds
• Front mounting design

Product Highlights

Perfect for various industrial operations, this Siemens time relay ensures precise timing control. Its compact size and DIN rail mounting design facilitate easy installation.

Product Information

Standard Information

• Catalog Number: 3RA28111CW10
• Brand: Siemens
• Manufacturer: Siemens Industrial Controls
• Country of Origin: Czech Republic

Technical Specifications

• Dimensions (L x W x H): 4.22 inches x 1.97 inches x 1.86 inches
• Weight: 0.154 lb
• Resistance: 4 kV
• Operating Cycles: 100000000
• Operating Temperature: 60 to -25 degrees C
• Environmental Conditions: 80 to -40 degrees C
• Sub Brand: SIRIUS
• Application: Timing Relay
