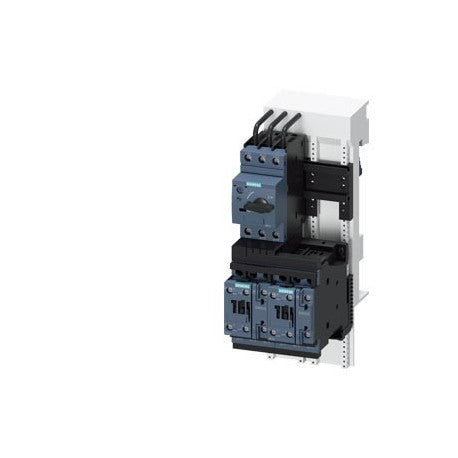

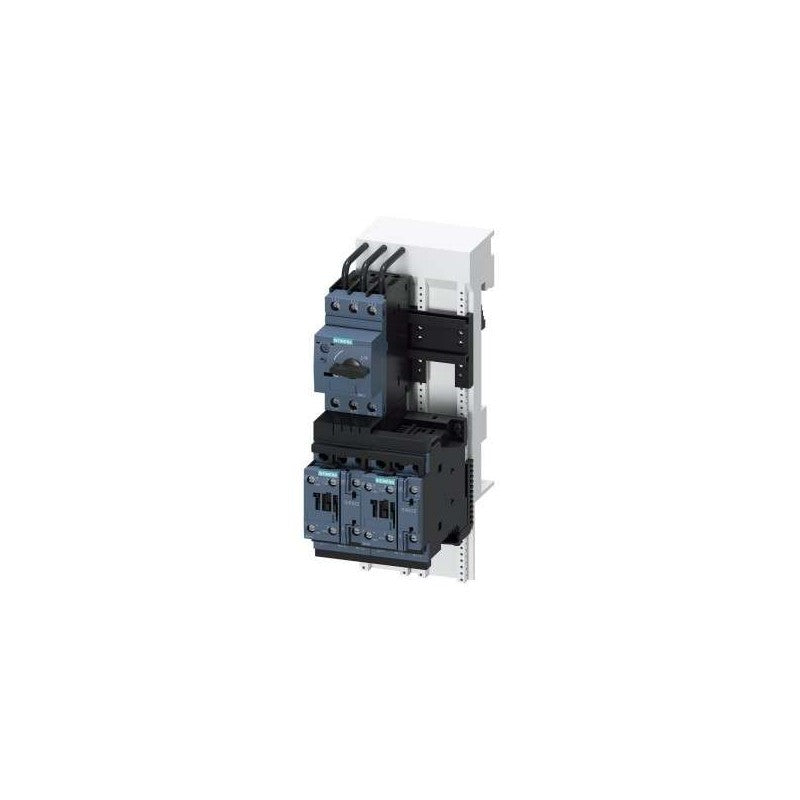

Siemens 3RA22204AD260BB4 Starter Rev Fb S0 11-16A S

Product Description

The SIEMENS 3RA22204AD260BB4 is a motor starter, reversible with a 24VDC supply and 15.5A 690V load. It is designed for mounting onto 60mm busbar systems and fulfills type of coordination 1. Suitable for AC motors, it operates within a temperature range of -20°C to 60°C.

• Reversible motor starter with 24VDC supply
• Rated for 15.5A and 690V load
• Operating temperature: -20°C to 60°C

Product Highlights

The SIEMENS 3RA22204AD260BB4 is a reversible motor starter with a 24VDC supply, ideal for AC motor applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RA22204AD260BB4
• Country of Origin: IT

Technical Specifications

• Category: Motors, Actuators, Solenoids and Drivers
• Motor Driver Boards, Modules: Motor Driver Boards, Modules
• Number of Motors: 1
• Manufacturer: Siemens
• Voltage - Load: 690V
• Series: SIRIUS
• Current - Output: 15.5A
• Packaging: Box
• Wattage - Load: 7460 W
• Part Status: Active
• Voltage - Supply: 24VDC
• Type: Module
• Mounting Type: Chassis Mount
• Motor Type: AC Motor
• Operating Temperature: -20°C ~ 60°C
• Control / Drive Type: Motor Starter, Reversible
• Operation: Reversing
• Starter Type: 3RA2220
• Starter Rating: 40A
• Frame Size, Starter: S0
• Contactor Type: 3RT20
• Phase: 3
• Coil Voltage: 24V DC
• Overload Relay: Adjustable
• Motor FLA: 11 - 16
• Rating Hp/Volts: 3PH: 5hp/220V, 5hp/230V, 10hp/460V, 10hp/480V, 10hp/575V, 10hp/600V
• Rated Current: 16 A
• Rated Voltage: 400 V
• Model Number: N/3RA22204AD260BB4
• Brand Name: Siemens
• Feature: Safety
