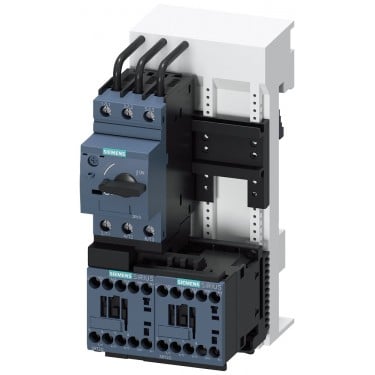

Siemens 3RA22100JD152BB4 Starter Rev Fb S00 0.7-1A 24Vdc Screw

Product Description

The SIEMENS 3RA22100JD152BB4 starter rev fb S00 0.7-1A is a load feeder, reversing duty, AC 400V, size S00 with 0.7...1A, DC 24V screw connection for busbar systems 60mm type of coordination 2, IQ = 150KA. It also fulfills type of coordination 1 and has 1NC contactor.

• Reversible motor starter with 24VDC supply
• Rated for 690V load voltage
• Overload release current setting of 0.7 - 1A

Product Highlights

This Siemens motor starter is designed for AC motors and features screw connections, temperature compensated overload protection, and a coordination class of 2 according to IEC 60947-4-3.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RA22100JD152BB4
• Country of Origin: DE

Technical Specifications

• UNSPSC Code: 39120000
• Brand: SIEMENS
• Manufacturer Part Number: 3RA22100JD152BB4
• Unit of Measure: EA
• UPC Code: 662643901160
• Category: Motors, Actuators, Solenoids and Drivers
• Motor Driver Boards, Modules: Motor Driver Boards, Modules
• Number of Motors: 1
• Manufacturer: Siemens
• Voltage - Load: 690V
• Series: SIRIUS
• Current - Output: 0.85A
• Packaging: Box
• Wattage - Load: 372.85 W
• Part Status: Active
• Voltage - Supply: 24VDC
• Type: Module
• Mounting Type: Chassis Mount
• Motor Type: AC Motor
• Operating Temperature: -20 C ~ 60 C
• Control / Drive Type: Motor Starter, Reversible
• Rated control supply voltage DC (V): 24 - 24
• Voltage type for actuating: DC
• Rated operation power at AC-3, 400 V (kW): 0.25
• Rated operation current Ie (A): 1
• Overload release current setting (A): 0.7 - 1
• With short-circuit release: Yes
• Type of electrical connection of main circuit: Screw connection
• Degree of protection (IP): IP20
• Height (mm): 204
• Depth (mm): 155
• Type of motor starter: Other
• Rated operation current at AC-3, 400 V (A): 1
• Rated conditional short-circuit current, type 1, 480 Y/277 V (A): 65000
• Rated conditional short-circuit current, type 1, 600 Y/347 V (A): 30000
• Rated conditional short-circuit current, type 2, 230 V (A): 150000
• Rated conditional short-circuit current, type 2, 400 V (A): 150000
• Ambient temperature, upper operating limit ( C): 60
• Temperature compensated overload protection: Yes
• Release class: CLASS 10
• Type of electrical connection for auxiliary- and control current circuit: Screw connection
• Suitable for rail mounting: No
• Supporting protocol for TCP/IP: No
• Supporting protocol for PROFIBUS: No
• Supporting protocol for CAN: No
• Supporting protocol for INTERBUS: No
• Supporting protocol for ASI: No
• Supporting protocol for MODBUS: No
• Supporting protocol for Data-Highway: No
• Supporting protocol for DeviceNet: No
• Supporting protocol for SUCONET: No
• Supporting protocol for LON: No
• Supporting protocol for PROFINET IO: No
• Supporting protocol for PROFINET CBA: No
• Supporting protocol for SERCOS: No
• Supporting protocol for Foundation Fieldbus: No
• Supporting protocol for EtherNet/IP: No
• Supporting protocol for AS-Interface Safety at Work: No
• Supporting protocol for DeviceNet Safety: No
• Supporting protocol for INTERBUS-Safety: No
• Supporting protocol for PROFIsafe: No
• Supporting protocol for SafetyBUS p: No
• Supporting protocol for other bus systems: No
• With transformer: No
• Number of command positions: 1
• Suitable for emergency stop: Yes
• Coordination class according to IEC 60947-4-3: Class 2
• Number of indicator lights: 0
• External reset possible: No
• With fuse: No
• Degree of protection (NEMA): Other
• MPN: 3RA2210-0JD15-2BB4, SIE3RA22100JD152BB4, 3RA22100JD152BB4
• EAN: 4011209797949
• HS Code: 85364900
• Product Code: 3RA22100JD152BB4
