Siemens 3RA21304EA350NB3 Starter Nonrev Pnl S2 22-32A 20-33VUC REPLACEMENT 3RA21304EA350NB3

Product Description

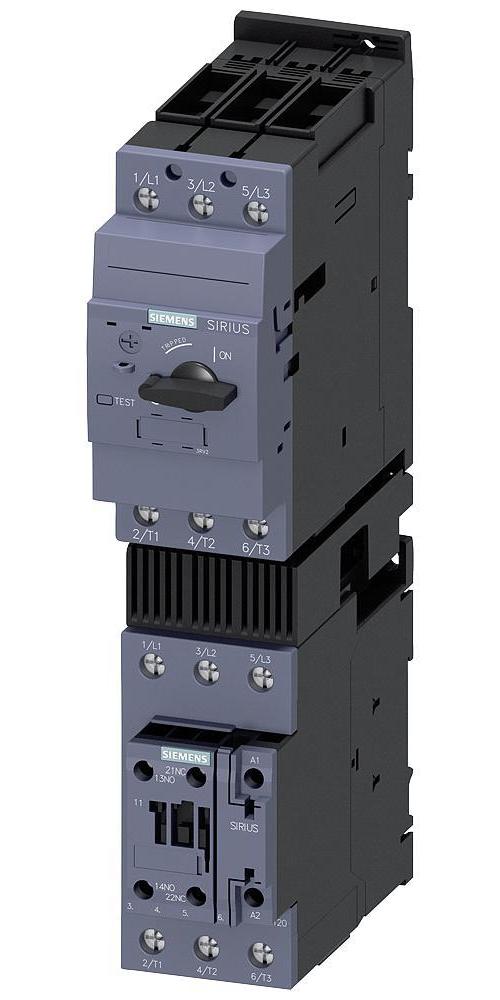

The Siemens 3RA21304EA350NB3 is a combination starter, SZ 2 direct on line fuseless load feeder non-reversing. It has a rated insulation voltage of 690 V AC and amperage of 29 A. Designed with a thermal bimetal overload relay and an IP00/20 enclosure, it operates between -20 to 60 deg C.

• 20 to 33 VAC/VDC at 50/60 Hz coil voltage
• Thermal overload Class 10
• DIN rail mounting (35mm width)

Product Highlights

Combination motor starter suitable for direct on line applications with a 22-32A setting and 20-33VUC coil.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RA21304EA350NB3
• Country of Origin: DE

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 3RA21304EA350NB3
• UPC Code: 804766091551
• Overview: Starter nonrev pnl s2 22-32a 20-33vuc
• Part Number #: 3RA21304EA350NB3
• SKU #: 2428584
• Amperage Rating: 29 A
• Coil Voltage: 20 to 33 V AC/DC
• Enclosure Type: IP00/20
• Frequency Rating: 50/60 Hz
• Motor Power: 11 kW, 15 kW
• Number of Poles: 3
• Operating Cycles: 10000000 Cycles
• Operating Temperature: -20 to 60 deg C
• Overload Relay: Thermal Bimetal
• Series: SIRIUS
• Setting: 22 to 32 A
• Type: SZ 2 Direct On Line Fuseless Load Feeder Non-Reversing
• Connection type: Screw Terminal
• Country of origin: DE
• Manufacturer Name: Siemens
• Voltage - Load: 690V
• Current - Output: 29A
• Wattage - Load: 15000 W
• Voltage - Supply: 20 ~ 33VAC/DC
• Mounting Type: DIN Rail
• Motor Type: AC Motor
• Control / Drive Type: Motor Starter
• Primary brand: Siemens
• Main function: Combination motor starter
• Product series / family name: SIRIUS
• Sub-range name: 3RA21 series
• Network frequency: 50/60 Hz
• Functions: Type 2 coordination combination motor starter
• ON/OFF rotary handle with lockout: ON/OFF rotary handle with lockout
• Design: Direct On Line (DOL) / FVNR (Full-Voltage Non-Rv.)
• Poles: 3-poles (3P)
• Rated current: 22A-32A (adjustable)
• Rated power (HP): 3HP (115Vac; single-phase) 7.5HP / 7-1/2HP (230Vac; single-phase) 10HP (200Vac; 3-phase) 15HP (230Vac; 3-phase) 30HP (460Vac; 3-phase) 40HP (575Vac; 3-phase)
• Rated impulse voltage (Uimp): 6 kV
• Rated insulation voltage (Ui): 690 V
• Short circuit breaking rating: 65kA (480Y/277Vac; UL489 / CSA rating)
• Control Voltage (AC): 24Vac
• Control Voltage (DC): 24Vdc
• Protection functions: Thermal overload Class 10 Short circuit protection 3-phase overload with phase loss sensitivity
• Protection settings: Overload protection -- 22A-32A (adjustable)
• Mounting mode: DIN rail mounting
• Operating mode: ON/OFF rotary knob/handle
• Contacts type: 1NO+1NC aux. cont. (STARTED/STOPPED)
• Net Width (mm): 35 mm
• Contents: 1 x contactor 3RT2035-1NB30 1 x motor starter protector 3RV2031-4EA10 1 x link module 3RA2931-1AA00
• Electrical durability (with load): 100000 operations
• Mechanical durability (at no load): 100000 operations
• Application type: Direct On Line (DOL)
• Order code / Manufacturer SKU: 3RA2130-4EA35-0NB3 3RA21304EA350NB3
• Manufacturer product status: Commercialized
• Equivalent to: 3RA21304EA350NB3
• EAN code: 4047621000718
• Compliant with standard(s): IEC 60947-1 EN 60947-1 IEC 60947-2 EN 60947-2 IEC 60947-4-1 EN 60947-4-1 IEC 60068-2-27 IEC 60529
• Number of Motors: 1
• Part Status: Active
