Siemens 3RA21151KA171AK6 Starter DOL S00 9-12.5A 120VAC S

Product Description

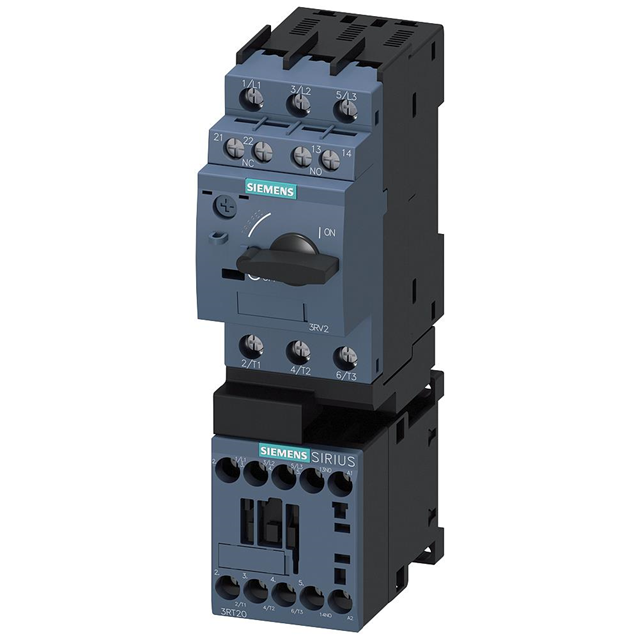

The SIEMENS 3RA21151KA171AK6 is a motor starter with a 120VAC supply and a 690V load, designed for 11.5A. It combines a 3RV2 motor starter protector and a 3RT2 electromechanical contactor. It is suitable for direct-on-line starting of three-phase motors up to 32A.

• Motor Starter 120VAC Supply 11.5A 690V Load
• Operating Temperature: -20 to 60 deg C (-4 to 140 deg F)
• Screw Connection for Screw Mounting or 35 mm Rail-Mounting

Product Highlights

The SIEMENS 3RA21151KA171AK6 motor starter protector is responsible for overload and short-circuit protection.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RA21151KA171AK6

Technical Specifications

• Category: Motors, Actuators, Solenoids and Drivers
• Motor Driver Boards, Modules: Motor Driver Boards, Modules
• Number of Motors: 1
• Manufacturer: Siemens
• Voltage - Load: 690V
• Series: SIRIUS
• Current - Output: 11.5A
• Part Status: Active
• Voltage - Supply: 120VAC
• Type: Motor Starter Protector MSP, Contactor/Starter Combination
• Mounting Type: DIN Rail
• Motor Type: AC Motor
• Operating Temperature: -20 C ~ 60 C
• Control / Drive Type: Motor Starter
• Operation: Direct-On-Line
• Starter Type: 3RA21
• Starter Rating: 16A
• Frame Size, Starter: S00
• Contactor Type: 3RT20
• Phase: 3
• Coil Voltage: 110/120V 50/60Hz
• Motor FLA: 9 - 12.5
