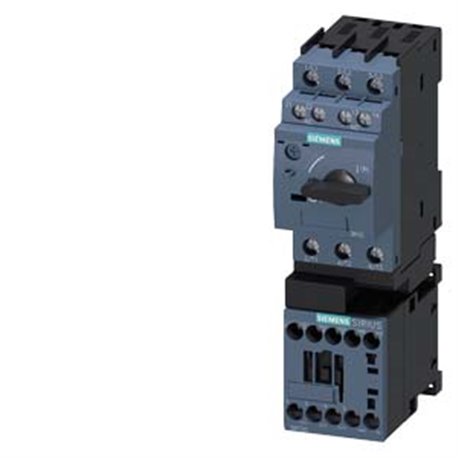

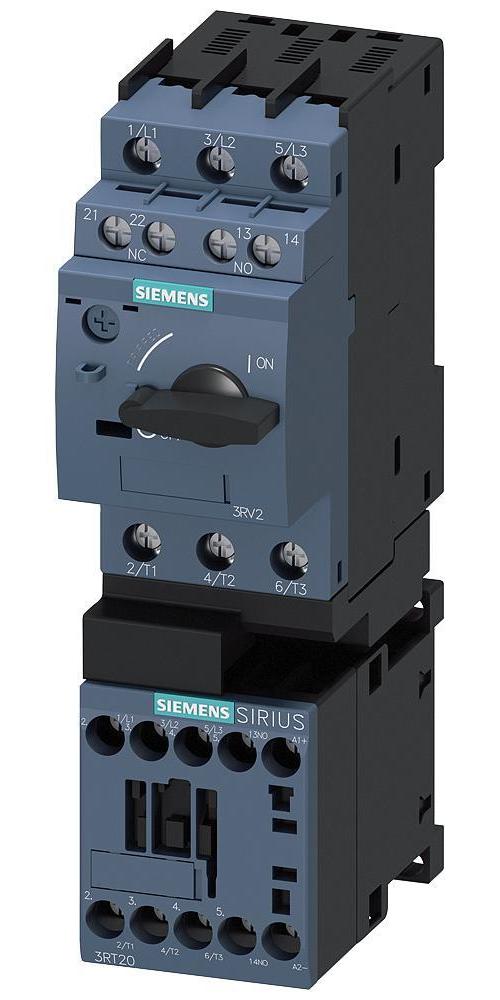

Siemens 3RA21151DA151BB4 Starter Dol S00 2.2-3.2A 24VDC

Product Description

The SIEMENS 3RA21151DA151BB4 is a motor starter with a 24VDC supply and a 690V load. It is designed for AC motors and features a control/drive type motor starter. It is suitable for various applications requiring motor control and protection. The motor starter is rated for 2.2A-3.2A / 1.1kW / 1.5HP.

• Motor starter protector and contactor are mechanically and electrically connected
• Auxiliary switches can be easily fitted due to the modular system
• Type 2 coordination combination motor starter

Product Highlights

The SIEMENS 3RA21151DA151BB4 motor starter provides reliable motor control and protection with easy installation and maintenance.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3RA21151DA151BB4
• Country of Origin: United States of America

Technical Specifications

• Category: Motors, Actuators, Solenoids and Drivers
• Motor Driver Boards, Modules: Motor Driver Boards, Modules
• Number of Motors: 1
• Manufacturer: Siemens
• Voltage - Load: 690V
• Packaging: Box
• Current - Output: 2.7A
• Part Status: Active
• Wattage - Load: 1490 W
• Type: Module
• Voltage - Supply: 24VDC
• Motor Type: AC Motor
• Mounting Type: DIN Rail
• Control / Drive Type: Motor Starter
• Operating Temperature: -20°C ~ 60°C
• Full Load Current: 2.7 A
• Motor Power: 3/4 hp, 1-1/2 hp, 2 hp
• UNSPSC: 39121521
• Reference: 3RA21151DA151BB4
• Condition: New
• Primary brand: Siemens
• Main function: Combination motor starter
• Product series / family name: SIRIUS
• Sub-range name: 3RA21 series
• Functions: Type 2 coordination combination motor starter
• ON/OFF rotary handle with lockout: ON/OFF rotary handle with lockout
• Design: Direct On Line (DOL) / FVNR (Full-Voltage Non-Rv.)
• Poles: 3-poles (3P)
• Rated current: 2.2A-3.2A (adjustable)
• Rated active power (kW): 1.1kW (400Vac) 1.5kW (500Vac)
• Rated power (HP): 1/10HP (115Vac; single-phase) 1/4HP (230Vac; single-phase) 1/2HP (200Vac; 3-phase) 3/4HP (230Vac; 3-phase) 1.5HP / 1-1/2HP (460Vac; 3-phase) 2HP (575Vac; 3-phase)
• Rated impulse voltage (Uimp): 6 kV
• Rated insulation voltage (Ui): 690 V
• Connection type: Screw-clamp connections (main circuits)
• Short circuit breaking rating: 65kA (480Vac; UL489 / CSA rating)
• Ultimate short circuit current breaking capacity (Icu): Iq = 150kA
• Control Voltage (DC): 24Vdc
• Protection functions: Thermal overload Class 10
• Short circuit protection: 3-phase overload with phase loss sensitivity
• Protection settings: Overload protection -- 2.2A-3.2A (adjustable)
• Mounting mode: DIN rail mounting
• Operating mode: ON/OFF rotary knob/handle
• Contacts type: 2NO+1NC aux. cont.
• Dimensions: Size S00
• Net Width (mm): 45 mm
• Contents: 1 x contactor 3RT2015-1BB41 1 x motor starter protector 3RV2011-1DA10 1 x link module 3RA1921-1DA00
• Electrical durability (with load): 100000 operations
• Mechanical durability (at no load): 100000 operations
• Application type: Direct On Line (DOL)
• Order code / Manufacturer SKU: 3RA2115-1DA15-1BB4 3RA21151DA151BB4
• Manufacturer product status: Commercialized
• Equivalent to: 3RA21151DA151BB4
• Compliant with standard(s): IEC 60947-1 EN 60947-1 IEC 60947-2 EN 60947-2 IEC 60947-4-1 EN 60947-4-1 IEC 60068-2-27 IEC 60529 SN 31920
