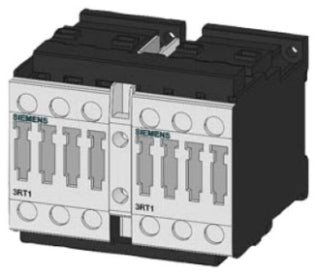

Siemens 3RA1323-8XB30-1AK6 Reversing Contactor Assembly

Product Description

The Siemens 3RA1323-8XB30-1AK6 is a reversing contactor assembly designed for motor control applications. This contactor is ideal for controlling the direction of single-phase and three-phase motors. It is engineered to handle various power ratings effectively.

• Assembled and wired for immediate use
• Mechanical interlock included for safety
• Control circuit wiring already integrated

Product Highlights

This contactor offers reliability in motor control with built-in safety features.

Product Information

Standard Information

• Manufacturer: Siemens
• Type: Reversing

Technical Specifications

• Approval: UL, CSA, CE, EAC
• Coil Voltage: 110 VAC at 50 Hz, 120 VAC at 60 Hz
• Number Of Poles: 3
• Power Rating/Voltage: 1/3 HP at 115 V 1-Phase, 1 HP at 230 V 1-Phase, 2 HP at 200 V 3-Phase, 3 HP at 230 V 3-Phase, 5 HP at 460 V 3-Phase, 7-1/2 HP at 575 V 3-Phase
• Enclosure: IP20
• Mounting: Screw/Snap-On
• AUX Contact: 2NC
• Construction Standard: IEC
• Size REF: FRAME 102
• Product UPC: 754554669809
