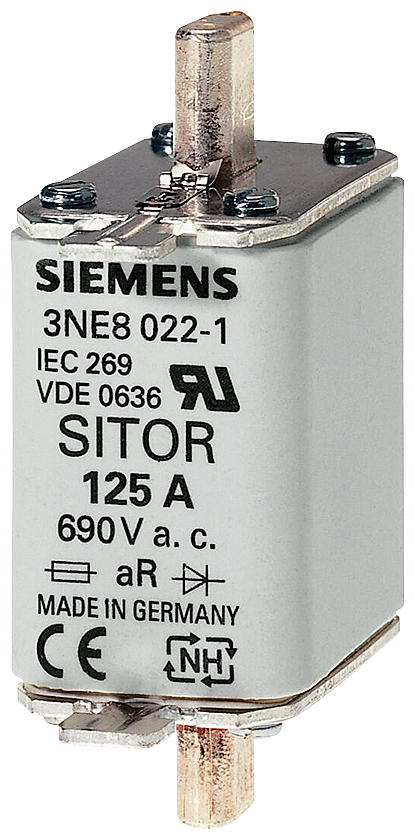

Siemens 3NE8022-1 Fuse 125A Size NH00

Product Description

The SIEMENS 3NE8022-1 is a 125A fuse designed for supplementary protection and suitable for use with the SITOR Semiconductor Fuse System. It is a fuse link with blade termination. The fuse can be mounted on a standard DIN rail (35mm). It is suitable for supplementary protection and SITOR semi-conductor protection.

• Supplementary protection
• Super quick disconnect for IEC 60269-2
• Class aR

Product Highlights

The SIEMENS 3NE8022-1 fuse is ideal for protecting semiconductor devices. It has a voltage rating of 690 VAC and a 100kA interrupt rating.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3NE8022-1
• Country of Origin: GR

Technical Specifications

• Manufacturer Part Number: 3NE8022-1
• Manufacturer: SIEMENS
• UNSPSC Code: 39120000
• Unit of Measure: EA
• Series: 3NE Series
• Voltage Rating: 690 V
• UPC Code: 040892553185
• Primary Type: Fuse
• Alternate Mfr Part Number: 3NE8022-1
• Class: Class aR
• Type: Fuse link
• Termination: Blade
• Current Rating: 125 A
• Adapter Rating: N/A
• Application: SUPPLEMENTARY PROTECTION
• ARRA Compliant: C
• Buy American Compliant: C
• Catalog Number: 3NE8022-1
• Connection: N/A
• Country of Origin: GR
• Currency: USD
• Dimensions: 79 mm L x 60 m W x 30 mm D
• Element: N/A
• EU RoHS Indicator: C
• Frequency Rating: N/A
• Gross Volume Per Pack: 7.19
• Gross Volume UOM: in
• Gross Weight Per Pack: 0.4600 lb
• Gross Weight per Pack Metric: 0.21
• Gross Weight UOM Metric: kg
• Harmonization Tariff Schedule Code: 8536100040
• Height: 1.1500 in
• Height [Metric]: 2.9210 cm
• Interrupt Rating: 100kA
• Length: 2.5000 in
• Length [Metric]: 6.3500 cm
• Mounting: On standard mounting rail (DIN 35mm)
• Mounting Type: DIN Rail
• Rated Breaking Capacity: 100 kA
• Response Time: N/A
• Returnable: N
• Short Circuit Rating: 100kA
• Size: NH00
• Standard: GOST, CCC
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantCE CertifiedGOST CertifiedCCC CertifiedUL ListedDIN 43620
• Sub Brand: SENTRON
• Temperature Rating: -20 to 50 °C
• Type Of Indicators: N/A
• UNSPSC: 39121626
• UPC 11: 04089255318
• UPC 12: 040892553185
• Width: 2.5000 in
• Width [Metric]: 6.3500 cm
• Stock Status: NONSTOCK
• Brand: Siemens
• Amperage Rating: 125 A
• Material: N/A
• Suitable For Use With: SITOR Semiconductor Fuse System
