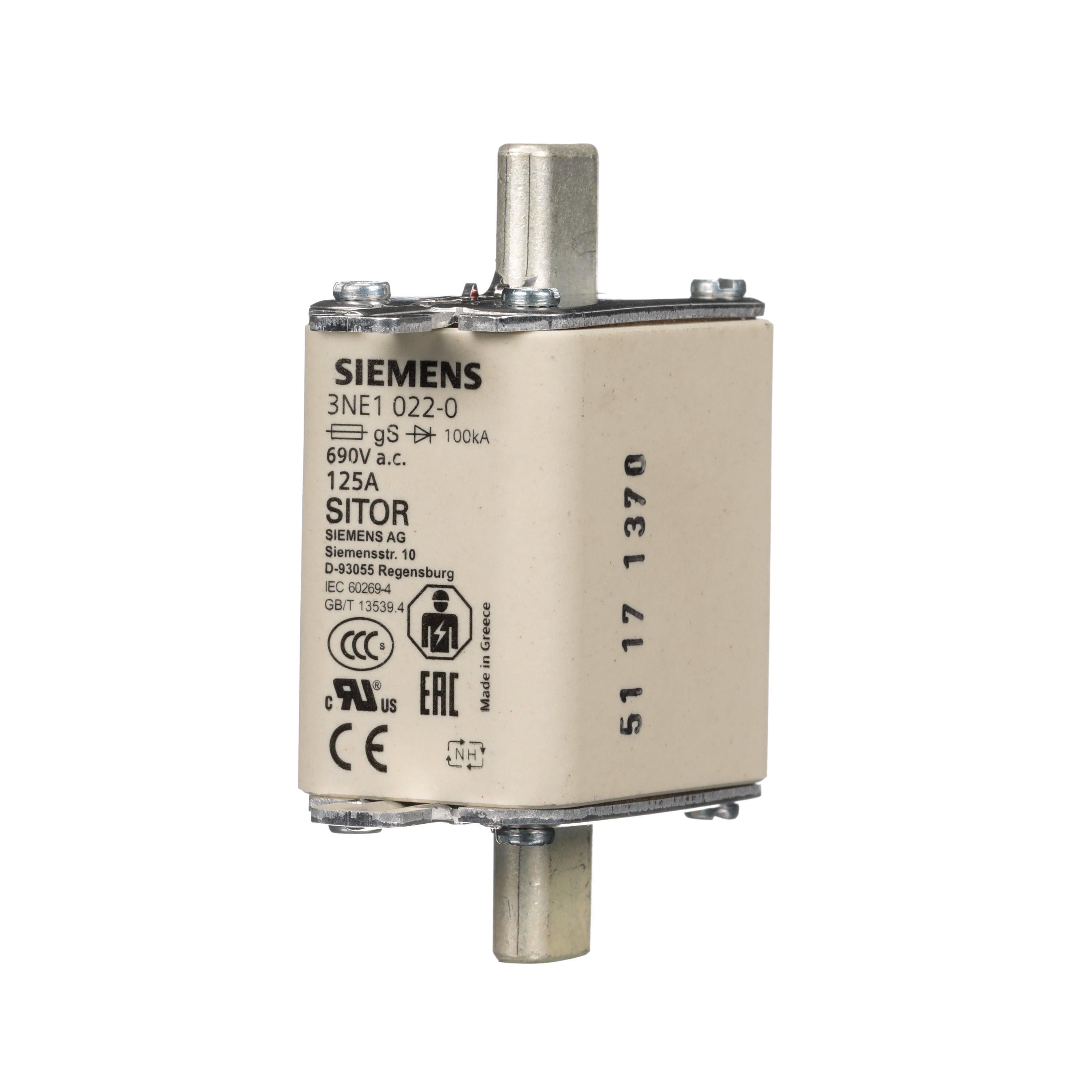

Siemens 3NE1022-0 Fuse, 125A, AC, 690V, (GR

Product Description

The Siemens 3NE1022-0 fuse is a SITOR fuse link designed for supplementary protection. Rated at 125A, 690V AC, it is suitable for use with SITOR semiconductor fuse systems. It can also be used in LV HRC designs. The fuse conforms to DIN 43620 standards.

• Class gS, Size NH00
• Interrupt Rating of 100 kAIC
• Suitable for DIN rail mounting

Product Highlights

The Siemens 3NE1022-0 fuse provides reliable supplementary protection in a compact size. It is ideal for use in SITOR semiconductor fuse systems.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3NE1022-0
• Country of Origin: Germany

Technical Specifications

• Size: NH00
• Type: Semiconductor Fuses SITOR
• Brand: Siemens
• Class: gS
• Voltage: 690 Volt
• Amperage: 125 Amp
• Standard: CCC,GOST,UL
• Sub Brand: SENTRON
• Applications: SUPPLEMENTARY PROTECTION
• Mounting Type: DIN Rail
• Interrupt Rating: 100 kAIC
• Country of Origin: Germany
• Short Circuit Current: 100 kA
• Manufacturer Part Number: 3NE1022-0
• Manufacturer: SIEMENS
• Series: 3NE Series
• Voltage Rating: 690 V
• Primary Type: Fuse
• Alternate Mfr Part Number: 3NE1022-0
• Termination: Blade
• Current Rating: 125 A
• For Use With: Fuses
• Rated Breaking Capacity: 100 kA
• Suitable For Use With: SITOR Semiconductor Fuse System
• Temperature Rating: -20 to 50 deg C
• Application: For supplementary protection and sitor semiconductor protection
• Standard & Approvals: ARRA, Buy American Act and RoHS Compliant, UL Listed, CCC, CE, GOST Certified, DIN 43620
• Amperage Rating: 125 A
• Fuse Class: gS
• Fuse Size: Size NH00
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCCC CertifiedCE CertifiedGOST CertifiedDIN 43620
• Temperature Range: -20 to 50 deg C
• Alternate Catalog Number: 3NE1022-0
• Catalog Number: 3NE1022-0
• EU RoHS Indicator: C
• Short Circuit Rating: 100kA
• Model: 3NE1022-0
• MPN: Does Not Apply
