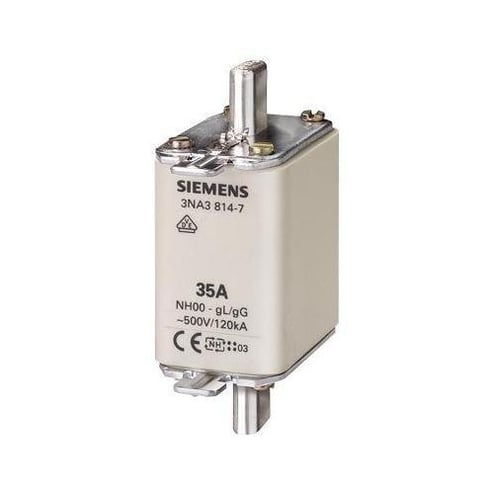

Siemens 3NA3814-7 Fuse 35A

Product Description

The SIEMENS 3NA3814-7 is a low voltage HRC fuse link designed for protection applications. Rated at 35A, 500 VAC, and 250 VDC, it features a front indicator and non-insulated grip lugs. It is suitable for installation systems in commercial, industrial buildings, and power utilities.

• Features a front indicator for quick identification of tripped fuses.
• Insulated grip lugs provide enhanced safety during replacement.
• Silver-plated contact pins ensure corrosion resistance and long-term operational safety.

Product Highlights

The SIEMENS 3NA3814-7 fuse link offers reliable protection and easy maintenance with its visual indicator and safety-focused design.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3NA3814-7
• Country of Origin: Germany

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 3NA3814-7
• Series: 3NA Series
• Current Rating: 35 A
• UNSPSC Code: 39120000
• UPC Code: 754554948027
• Class: gG
• Material: Ceramic
• Application: Protection Applications
• Mounting Type: Surface
• Terminal Type: Blade
• Voltage Rating: 500 VAC, 250 VDC
• Type: Low Voltage
• Amperage Rating: 35 A
• Interrupt Rating: 120 kA
• Short Circuit Current Rating: 120 kA at AC, 25 kA at DC
• Body Size: NH000
