Siemens 3LD28140TK51 Sentron Disconnect Switch 125 A

Product Description

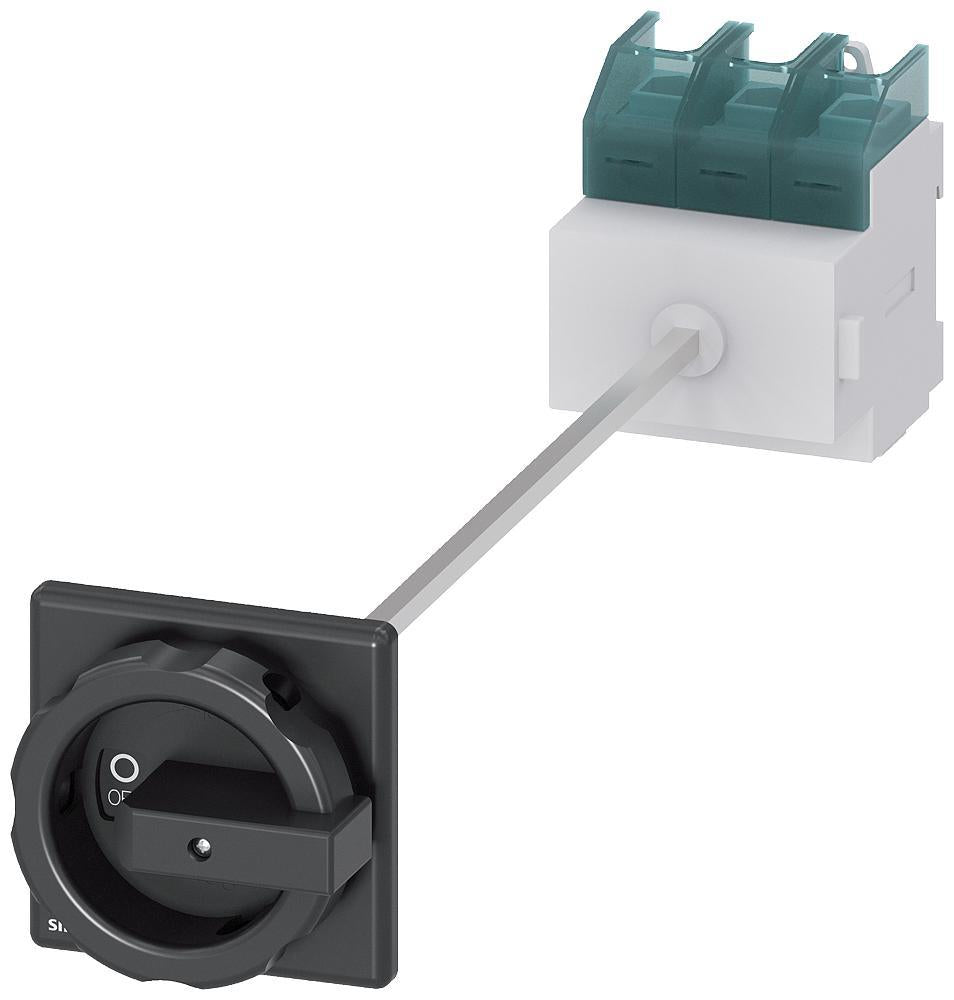

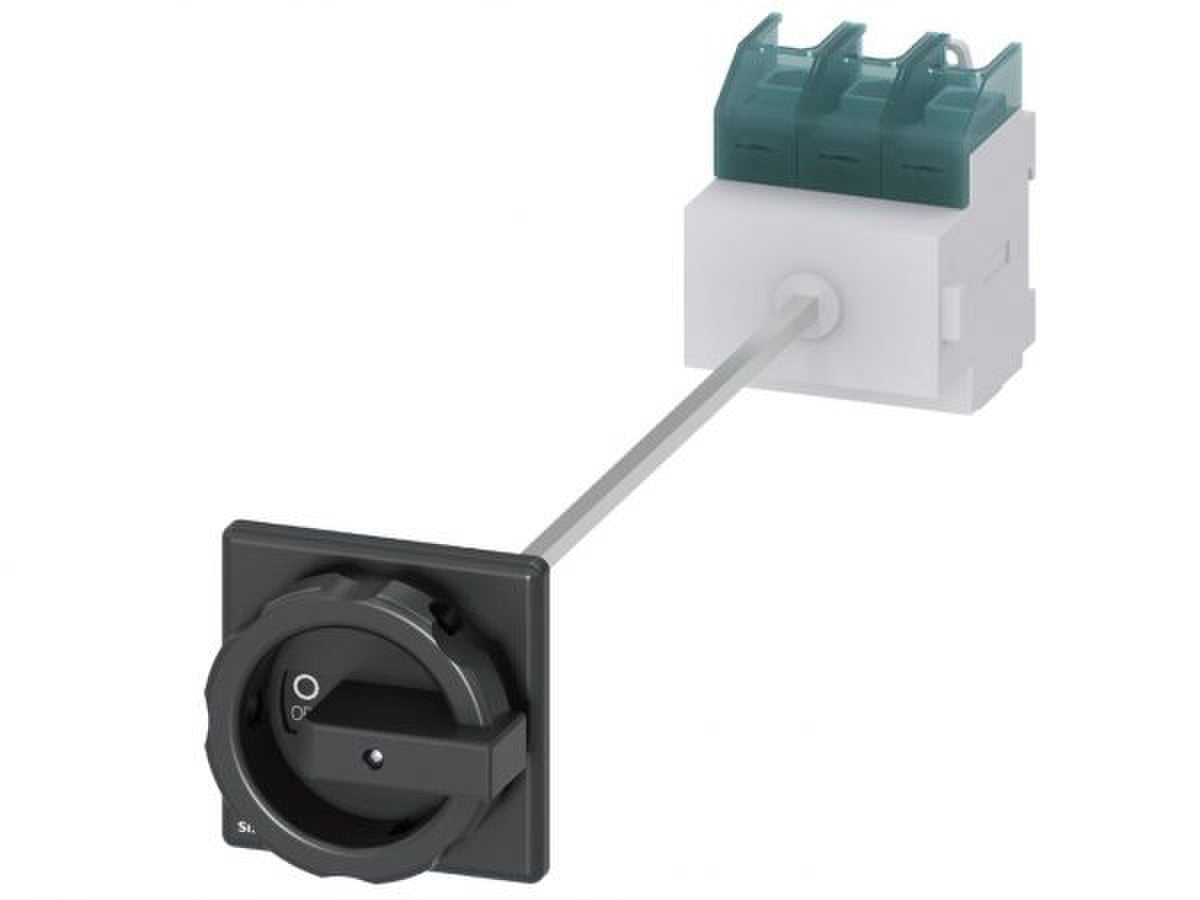

The Siemens 3LD28140TK51 Sentron disconnect switch is a 690 V AC, 125 A, 3-pole switch with a 50/60 Hz frequency. It features a rotary knob actuator, IP65 enclosure, and a 20 kA short circuit current rating. Suitable for switching main and auxiliary circuits, induction motors, and other loads during maintenance and repair work and indoor applications.

• 3LD2 type switches are pad lockable in the OFF position
• For OEM disconnects
• Emergency Stop Switch

Product Highlights

The Siemens 3LD28140TK51 is ideal for switching circuits and motors during maintenance.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3LD28140TK51
• Country of Origin: DE

Technical Specifications

• Actuator Type: Rotary Knob
• Amperage Rating: 125 A
• Enclosure Type: IP65
• Frequency Rating: 50/60 Hz
• Number of Poles: 3
• Series: 3LD
• Short Circuit Current Rating (kA): 20 kA
• Temperature Rating (Degrees F): -20 to 120 deg F
• Terminal Type: Box
• Mounting type: 4-Hole/Front
• Manufacturer Name: Siemens
• Brand: SIEMENS
• Manufacturer Part Number: 3LD28140TK51
• Maximum Current: 125 A
• Type: Rotary Disconnect Switch
• Operator: Rotary Handle/Shaft
• Operator Included: Included
• Operator Position: External
• Enclosure Application: IEC IP65
• Fuse Provision: Non-Fusible
• Poles: 3P
• Voltage: 690V
• Cont. Amps: 125A
• Mounting: Base or DIN Rail
• Terminal Conductor Size: 12-1
• Terminal Conductor Type: Cu
• Category: Switches
• Disconnect Switch Components: Disconnect Switch Components
• Current: 125A
• Packaging: Box
• Base Product Number: 3LD2814
• Part Status: Active
