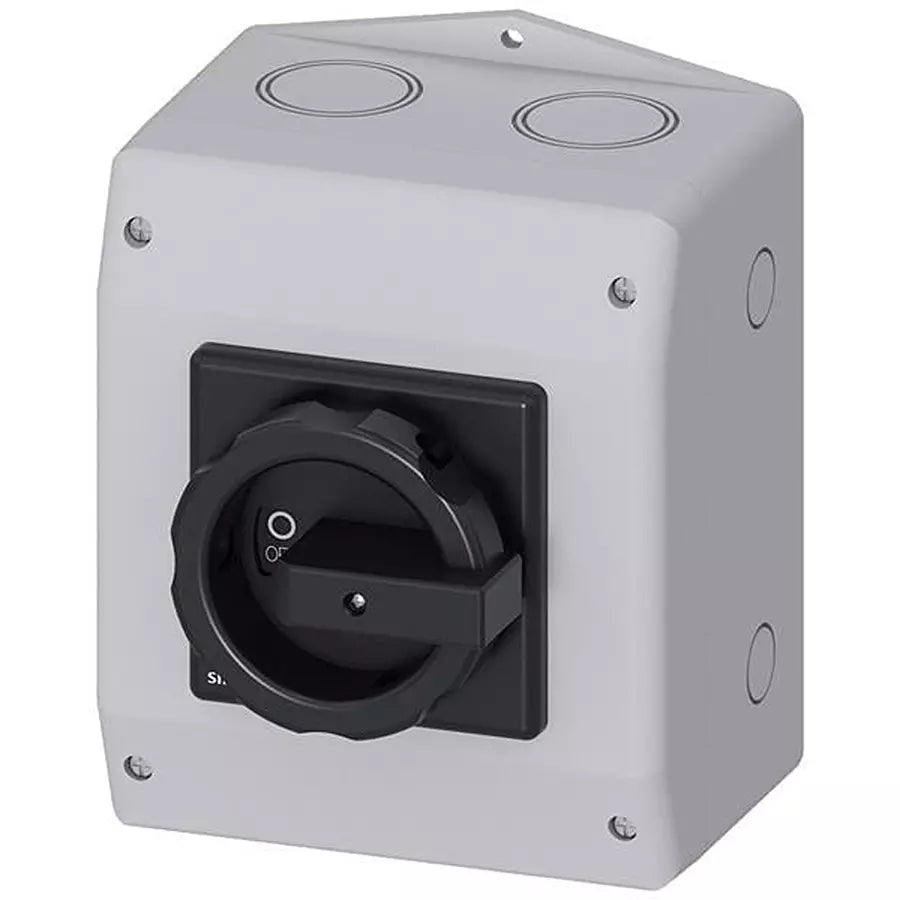

Siemens 3LD2565-1GP51-0US2 Sentron® Type OEM Main Switch Disconnector 690 VAC, 63 A, 10 hp at 240 VAC, 15 hp at 240 VAC, 40 hp at 480 VAC, 50 hp at 600 VAC, 1NC-1NO Contact

Product Description

The SIEMENS 3LD2565-1GP51-0US2 Sentron® type OEM main switch disconnector is rated for 690 VAC and 63 A. It handles 10 hp at 240 VAC, 15 hp at 240 VAC, 40 hp at 480 VAC, and 50 hp at 600 VAC, and features a 1NC-1NO contact configuration. It is designed for indoor applications.

• Enclosure Type IP65
• Rated for 690 VAC and 63 A
• Short circuit current rating of 1260 A

Product Highlights

The SIEMENS Sentron® 3LD series switch disconnector is ideal for switching applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3LD2565-1GP51-0US2
• Country of Origin: India

Technical Specifications

• Type: Type OEM Main
• Short Circuit Current Rating: 1260 A
• Enclosure Type: IP65
• Short Circuit Rating: 1260
• Series: 3LD
• Number Of Poles: 3
• Temperature Rating: -20 to 120 deg F
• Material: Molded Plastic
• ActuatorType: Short Rotary Knob
• Amperage Rating: 63 A
• Voltage Rating: 690 VAC
• Mounting Type: Centre Hole/Fixed
• Contact Form: 1NC-1NO
• Frequency Rating: 50/60 Hz
• Horsepower: 10 hp at 240 VAC, 15 hp at 240 VAC, 40 hp at 480 VAC, 50 hp at 600 VAC
• Terminal Type: Box
• GTIN: 00783643975408
• Phase: 1 ph, 3 ph
• Vendor SKU: 3LD2565-1GP51-0US2
• UNSPSC: 39122233
• UPC: 783643975408
• Minimum Order Qty: 1
• Order Interval: 1
• Application: Indoor Applications
• Standard & Approvals: CCC Certified|CE Certified|CSA Certified|UL Listed|VDE Approved
• Manufacturer: Siemens
• Brand: Siemens
• Category: Disconnect Accessory
• Voltage: 690V
• Current: 63A
• Packaging: Box
• Base Product Number: 3LD2565
• Part Status: Active
• Type of Product: Disconnect Switch
• Maximum Operating Temperature: 55°C
• IP Rating: IP65
• No. of Pole: 3 Pole
• Country of Origin: India
• Minimum Operating Temperature: -25°C
• Termination Style: Screw Termination
• Name of Manufacturer/Packer/Importer: Siemens
• Ordering ID: 982-3LD25651GP510US2
• Manufacturer Part Number: 3LD25651GP510US2
• Voltage Rating (AC): 690 V AC
• Mounting Style: Panel Mount
• Actuator: Knob
• Part No.: 3LD2565-1GP51-0US2
• Weight: 0.50 kgs
