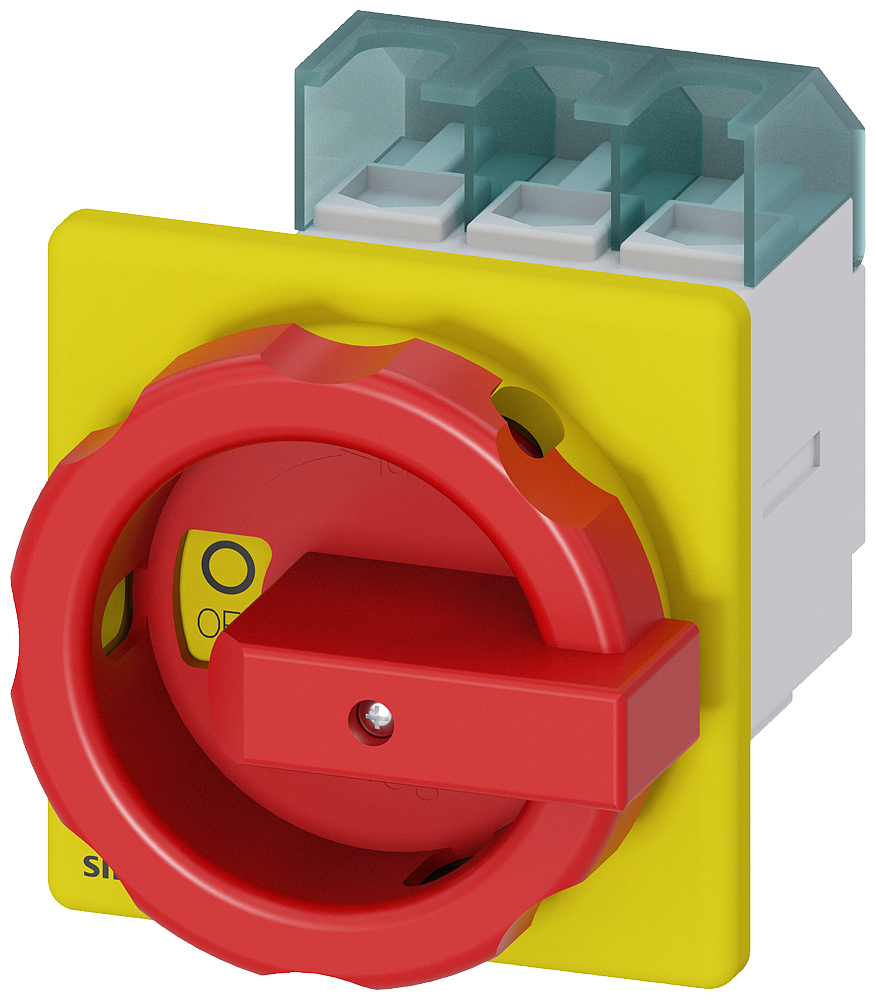

Siemens 3LD2555-0TK53 EM STOP SW 600 VAC 63 A 3 Poles

Product Description

Siemens 3LD2555-0TK53 emergency stop switch provides a reliable solution for safety in various applications. This switch operates at six hundred volts alternating current and supports a maximum of sixty-three amperes. Designed for three-phase motors and other loads, it ensures safe and efficient control under high-demand conditions. The product is suitable for use in compliance with the EN 60204 machinery directive.

• Suitable for three-phase motors and auxiliary circuits
• Padlockable in the OFF position
• Mounting type is center hole mounted

Product Highlights

This emergency stop switch features a rotary actuator and is designed for OEM disconnect applications.

Product Information

Standard Information

• Brand: Siemens
• Manufacturer: Siemens

Technical Specifications

• MPN: 3LD2555-0TK53
• Voltage Rating: 690 Volt
• Amperage Rating: 63 Amp
• Number of Poles: 3 Pole
• Dimensions: 4.5 inches x 4.55 inches x 4.5 inches
• Weight: 0.970 lb
• Enclosure Type: N/A
• Temperature Rating: -20F to 120F Ambient Temp
• Applications: OEM Disconnect
• Operating Cycles: N/A
• Country of Origin: Germany
