Siemens 3LD2264-0TB53-0US2 30A 3P Encl T4X Sw W/Screw Covr & R/Y H

Product Description

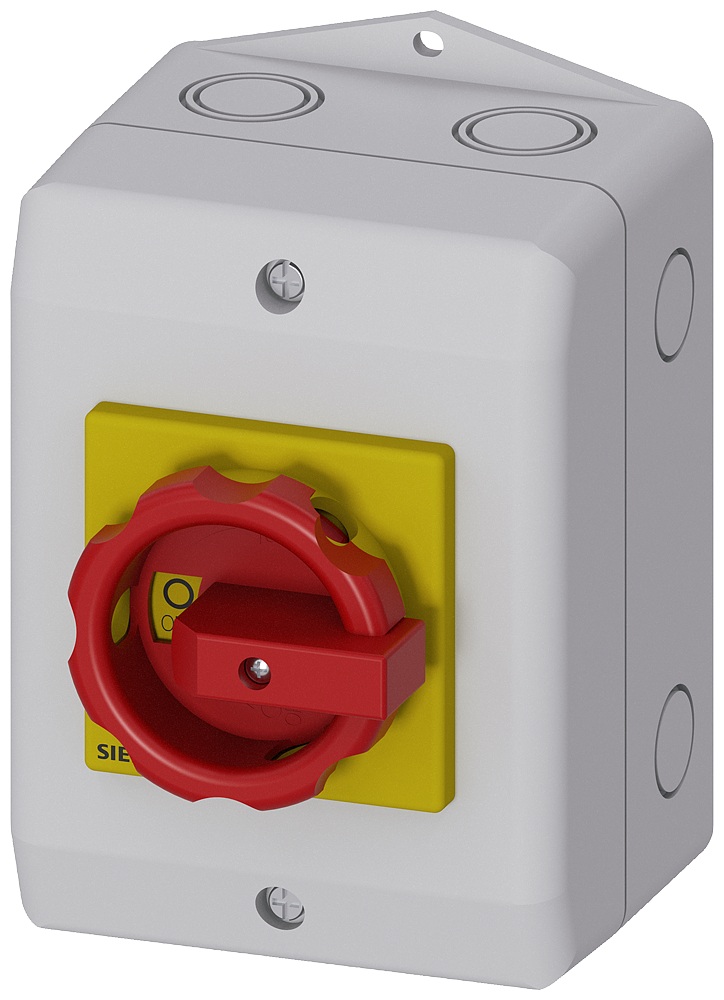

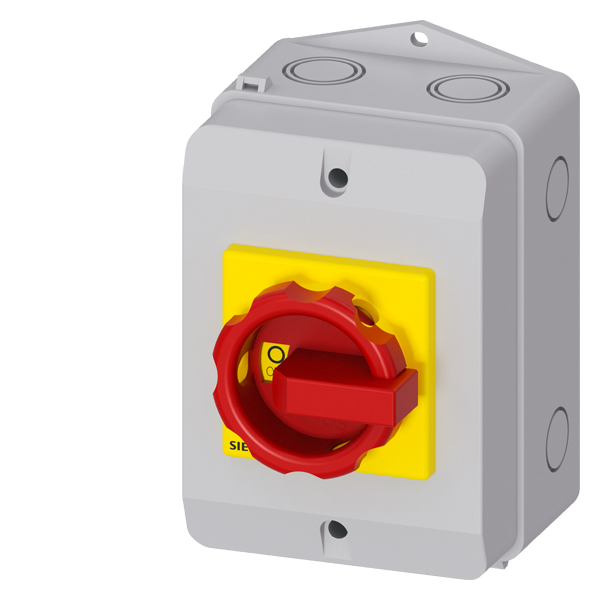

The SIEMENS 3LD2264-0TB53-0US2 is a 3-pole, 30A switch disconnector with an emergency stop function. Suitable for operational power at AC-23 A at 400 V: 11,5 kW, it features a molded-plastic enclosure for inch threaded joints and a red/yellow rotary operating mechanism. The enclosure is NEMA 1/4X/12K and IP65 rated.

• Emergency-stop switch
• Fiberglass reinforced polycarbonate enclosure
• Suitable for copper conductors sized (1) 14 to 10 AWG

Product Highlights

This enclosed rotary disconnect switch is UL, CUL, CSA, CE, CCC, VDE, and EAC approved and RoHS compliant. It operates between -25 to 55 Deg C.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3LD2264-0TB53-0US2
• Country of Origin: Germany

Technical Specifications

• Manufacturer Part Number: 3LD2264-0TB53-0US2
• Manufacturer: SIEMENS
• UNSPSC Code: 39120000
• Unit of Measure: EA
• Mounting Type: Panel Mount
• Series: 3LD Series
• Number of Poles: 3
• Maximum Current: 30 A
• UPC Code: 783643975316
• Alternate Mfr Part Number: 3LD2264-0TB53-0US2
• UNSPSC: 39122233
• Approval: UL, CUL, CSA, CE, CCC, VDE, EAC
• Hub Size: 1/2 Inch, 3/4 Inch
• Conductor Size: (1) 14 to 10 AWG
• Current Rating: 30 Amp
• Enclosure Type: NEMA 1/4X/12K, IP65
• Mounting: Floor, Fixed
• Conductor Material: Copper
• Enclosure Material: Fiberglass Reinforced Polycarbonate
• Circuit Configuration: 1/3-Phase 3-Wire
• Category: Switches
• Disconnect Switch Components: Disconnect Switch Components
• Type: Switch
• Voltage: 690V
• Current: 32A
• Base Product Number: 3LD2264
• Part Status: Active
• Actuator: Rotary
• Amperage: 32 Amp
• Applications: OEM Disconnect
• Enclosure: Yes
• Operating Temperature: -20F to 120F Ambient Temp
• Standard: UL
• Brand: Siemens
• Sub Brand: Sentron
