Siemens 3LD2113-0TK51 Sentron Disconnect Switch 690 VAC 25 A

Product Description

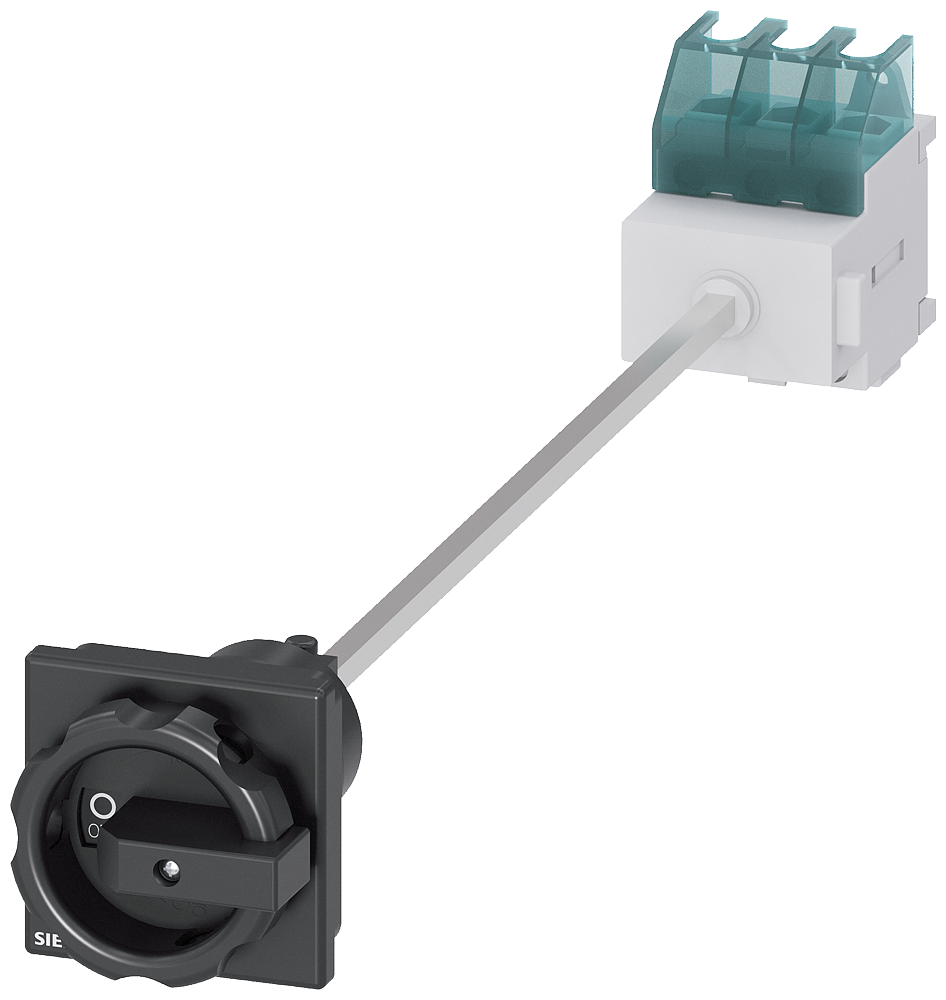

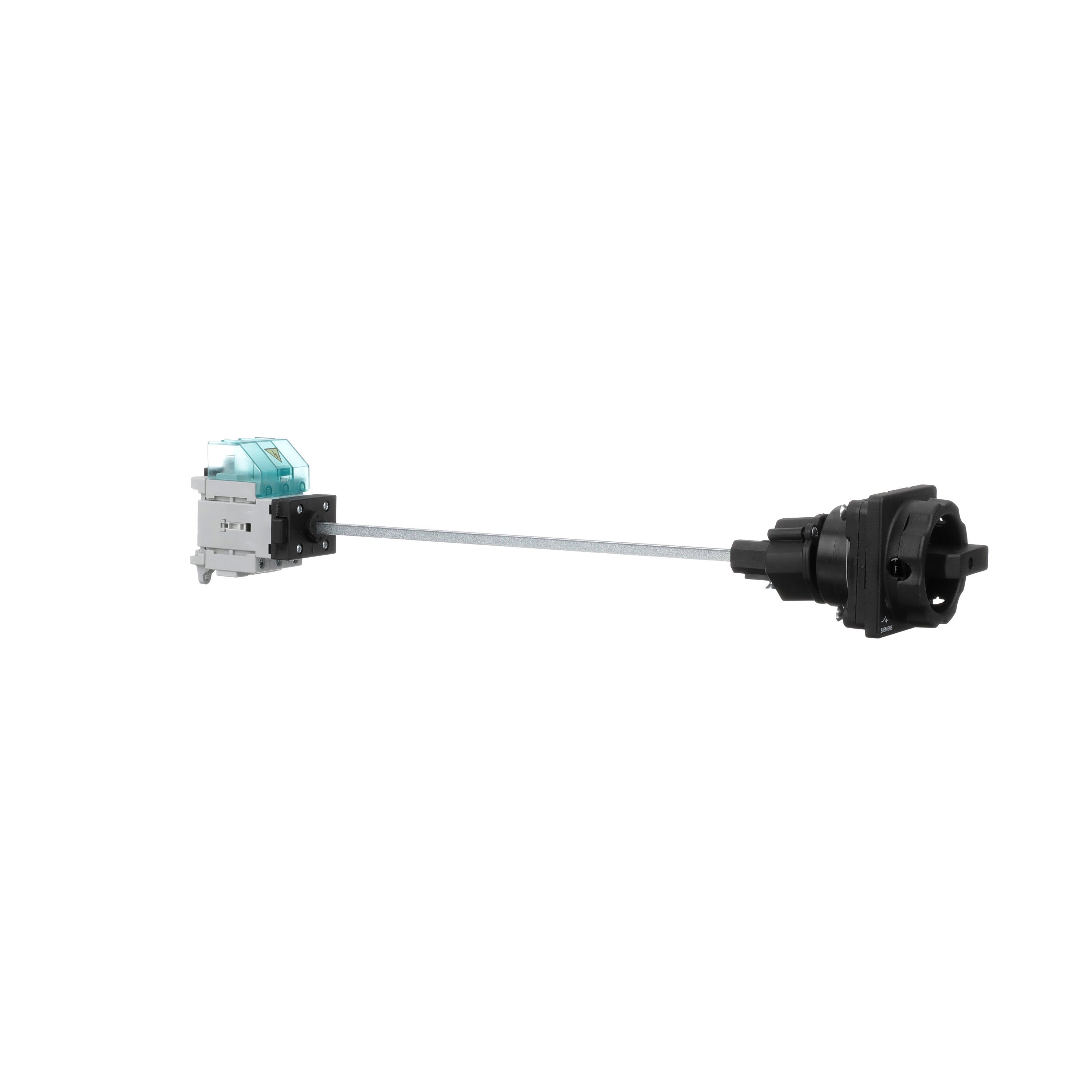

The Siemens 3LD2113-0TK51 Sentron disconnect switch is a 690 V AC, 25 A, 3-pole switch suitable for switching main and auxiliary circuits, induction motors, and other loads during maintenance. The 3LD2 type switches are pad lockable in the OFF position and are designed for OEM disconnects.

• Pad lockable in the OFF position
• Suitable for switching main and auxiliary circuits
• Designed for OEM disconnects

Product Highlights

This Siemens Sentron disconnect switch is ideal for maintenance and repair work, ensuring safety with its lockable OFF position.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3LD2113-0TK51
• Country of Origin: Germany

Technical Specifications

• Brand: Siemens
• Part Number #: 3LD2113-0TK51
• SKU #: 2371356
• Actuator Type: Rotary
• Dimensions: 3 x 3 x 17 in
• Mounting type: 2-Hole/DIN Rail
• UNSPSC: 39122233
• UPC: 00754554668819
• Amperage: 25 Amp
• Applications: OEM Disconnect
• Number of Poles: 3 Pole
• Operating Temperature: -20F to 120F Ambient Temp
• Voltage: 690 Volt
• Sub Brand: Sentron
• Enclosure Type: IP65
• Frequency Rating: 50/60 Hz
• Short Circuit Rating: 50 kA
• Temperature Rating: -20 to 120 °F
• Terminal Type: Box
• Series: 3LD
• Mounting: 2 Hole Mounted
• Voltage Rating: 690 VAC
