Siemens 3LD2103-0TK53 SENTRON Rotary Disconnect Switch 32 A

Product Description

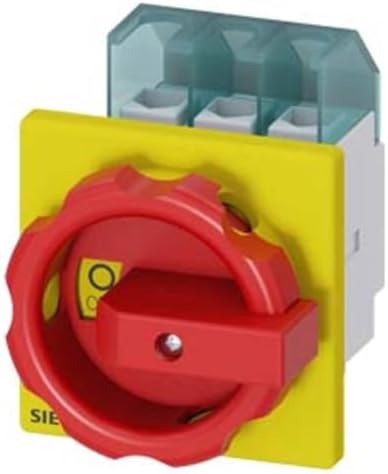

The SIEMENS 3LD2103-0TK53 SENTRON rotary disconnect switch operates at 690 VAC 50/60 Hz with a 32 A current rating. It is designed as a 3-pole, non-fusible switch suitable for DIN rail, front, 4-hole, or door mounting. Features a red/yellow actuator and an IP65 enclosure. It is suitable for 3LD switch disconnectors.

• RoHS/Reach/WEEE Compliant
• 3-pole Main Control and Emergency Stop Switch
• Front mount

Product Highlights

This rotary disconnect switch is ideal for industrial applications, offering reliable performance and easy installation.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3LD2103-0TK53
• Country of Origin: Germany

Technical Specifications

• Voltage Rating: 690 Volt AC 50/60 Hertz
• Current Rating: 32 Amp
• Power Rating: 2 HP at 120 Volt AC 1-Phase, 3 HP at 240 Volt AC 1-Phase, 10 HP at 240 Volt AC 3-Phase, 20 HP at 480/600 Volt AC 3-Phase
• Number Of Poles: 3
• Operator Type: Rotary
• Conductor Material: Copper
• Conductor Size: 14 to 8 AWG
• Enclosure: IP65
• Mounting: DIN Rail/Front/4-Hole/Door
• Approval: UL 508, CSA, CE, CCC
• Type: Non-Fusible
• No. of Poles: 3 Pole
• Contact Voltage AC Max: 690V
• Contact Current AC Max: 25A
• Switch Disconnector Terminal Style: Box Terminal
• Switch Disconnector Mountng Type: Front Mount
• Product Range: SENTRON 3LD Series
• Model: 3LD2103-0TK53
• Operation Mode: ON-OFF
• Mounting Type: DIN Rail Mount
• International Protection Rating: IP44
• UNSPSC: 39122233
