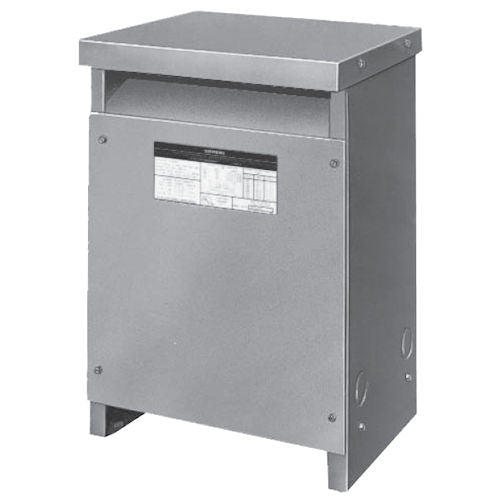

Siemens 3F3Y225D16 225kVA 600V Ventilated Distribution Dry Type Transformer, 3-Phase 480V-208Y/120, 2 FCAN/4 FCBN Taps, Energy-Efficient, NEMA 3R

Product Description

Siemens offers the 3F3Y225D16, a 225kVA ventilated distribution dry type transformer. It operates with a primary voltage of four hundred eighty volts and a secondary voltage of two hundred eight Y/one hundred twenty. This three-phase transformer features two FCAN and four FCBN taps, ensuring versatile voltage adjustments. Designed to meet the 2016 DOE energy efficiency standards, it is suitable for various applications in both commercial and industrial settings.

• Rated for 225kVA power output.
• NEMA 3R rated enclosure for outdoor applications.
• Temperature rise of one hundred fifty degrees Celsius with aluminum windings.

Product Highlights

This transformer features K-Factor 1 which enhances performance in harmonic load applications.

Product Information

Standard Information

• Brand: Siemens
• MPN: 3F3Y225D16

Technical Specifications

• Primary Voltage: 480 V Delta
• Secondary Voltage: 208 Y/120 Volt
• Power Rating: 225 kVA
• Number of Phases: 3
• Temperature Rise: 150 Deg C
• Weight: 1433.01 lb
• Enclosure: NEMA 2/3R
• Taps: (2) +2.5 Percent x (4) -2.5 Percent
