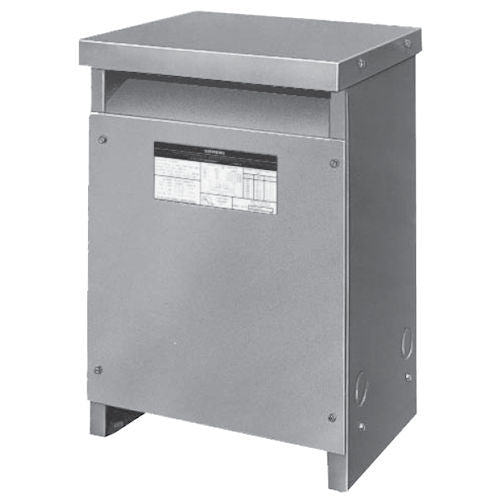

Siemens 3F3Y015D16 15kVA 600V Ventilated Distribution Dry Type Transformer 480 VAC Primary 208Y/120 VAC Secondary

Product Description

The Siemens 3F3Y015D16 is a 15 kVA ventilated distribution dry-type transformer designed for reliable performance in demanding environments. This three-phase transformer operates at a primary voltage of four hundred eighty volts and provides a secondary voltage of two hundred eight Y/one hundred twenty volts. It features an energy-efficient design and complies with DOE 2016 energy efficiency standards.

• 15 kVA power rating
• Enclosure type meets NEMA 3R standards
• K-factor 1 with aluminum windings

Product Highlights

This transformer is suitable for floor or wall mounting and includes six taps for voltage adjustment. It is built to handle maximum temperature rises of one hundred fifty degrees Celsius, making it ideal for various applications in power distribution.

Product Information

Standard Information

• Brand: Siemens
• Type: Low Voltage Ventilated

Technical Specifications

• Primary Voltage: 480 VAC
• Secondary Voltage: 208Y/120 VAC
• Power Rating: 15 kVA
• Mounting Type: Floor/Wall
• Dimensions: 21 in L x 19 in W x 22 in H
• Enclosure Type: NEMA 3R
• Number of Taps: 6
• Temperature Rating: 150 deg C
• Frequency Rating: 60 Hz
