Siemens 371-03150 3wmx ss =% or fxf 1.25/16.00+sax61.03u

Product Description

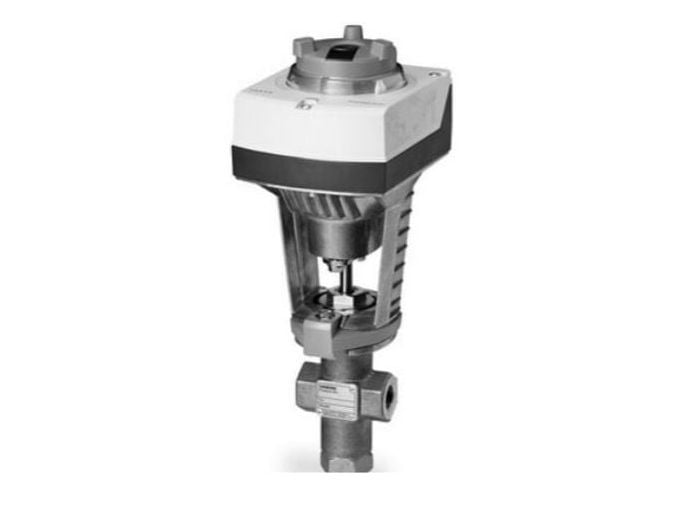

The SIEMENS 371-03150 3WMX SS =% OR FXF 1.25/16.00+SAX61.03U is an assembly with a 3-way mixing valve. It features a 1.25 inch NPT connection and a 16 Cv bronze body with stainless steel trim. It uses a 0-10Vdc, 24Vac, 24Vdc, non-spring return modulating actuator. Designed for HVAC applications with a 20-250 °F medium temperature range.

• 3 Way Mixing
• 1 1/4" NPT
• 16 Cv Bronze Body with Stainless Steel Trim

Product Highlights

This valve assembly is ideal for controlling water and water with antifreeze in HVAC systems.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 371-03150

Technical Specifications

• CV: 16
• Trim: Stainless Steel
• Actuator: SAX61.03U
• Assembly: Assembly
• Feedback: 0-10vdc
• Fail-Safe: Non-Spring Return
• Pipe Size: 1.25 in
• Connection: NPT
• Valve Type: Three-way
• Nema Rating: Nema 1
• Flow Pattern: Mixing
• Power Supply: Electric
• Valve Number: 599-03150
• Control Signal: 0-10vdc, 4-20mA
• Close Off Pressure: 92 PSI
• Fail Safe Position: Fail-In-Place
• Manufacturer Part Number: 371-03150
• Manufacturer: Siemens Building Technologies
• Product Series: FLOWRITE
• Description: 3WMX SS,=pct.,OR, FXF,
• Capacity: 16 Cv
• Connection Type: Threaded
• Max Close-Off Pressure: 92 psi
• Body Pattern: Three-Way Mixing
• Valve Style: Globe
• Medium Temperature Range: 20-250 °F
• Flow Characteristic: Equal Percentage In-Line/Linear Angled
• Nominal Voltage: 24 VAC, 24 VDC
• Fail-Safe Mode: Non-Spring
• Approvals: CSA, UL
• Control Input: Modulating
• Spring Return: Non-Spring Return
• Voltage: 24V
• Valve Body Style: Stroke-Globe
• Port Configuration: 3-Way Mixing
• End Connection: Internal Thread x Internal Thread
• Connecting thread: Direct-coupled universal bonnet
• Material, valve body: UNS CA 844 bronze
• Material, inside set: Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring , Seat: Single seat metal-to-metal
• Medium: Water , Water with anti-freeze
• High temperature: NO
• Valve Actuator Type: Electronic
• Supply Voltage: 24 VAC
• Valve Size: 1.25" - 3 Way
