Siemens 366-02026 2W NC Stainless Steel FxUM 24V (1/2 in) SAS81.33U

Product Description

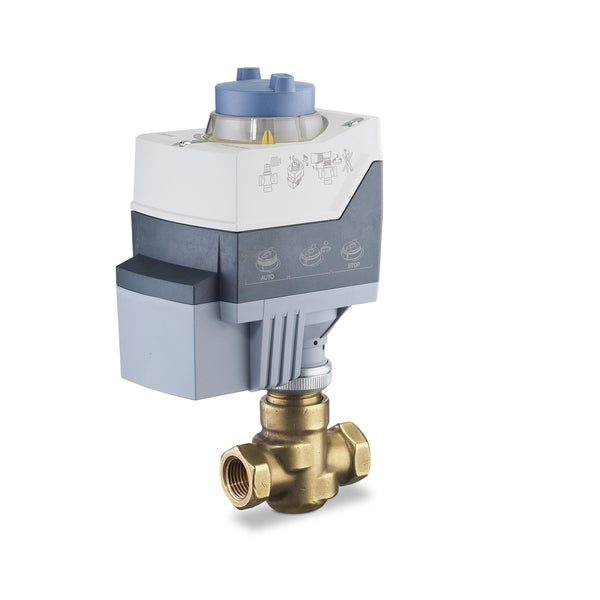

Siemens MPN 366-02026 is a 2-way, normally closed globe valve assembly with stainless steel trim and a spring-return electric actuator. The assembly has a 0.5 in valve size, Cv 4 flow coefficient, NPT connection, and a close-off pressure of 50 PSI. It is ANSI 250 rated with a modified equal percentage flow characteristic and floating control input, typically used for hot or chilled water control.

• 2-way normally closed globe valve with stainless steel trim and Cv 4 flow coefficient
• Electric spring-return actuator (SAS81.33U / SQS85.53U family) with 24V operation and floating control input
• 0.5 in (1/2 in) valve size with NPT connection, ANSI 250 rating, and 50 PSI close-off pressure

Product Highlights

2-way NC stainless steel globe valve assembly, Cv 4, 24V spring-return actuator, 1/2 in NPT connection, ANSI 250

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 366-02026
• Country of Origin: United States of America

Technical Specifications

• Brand: Siemens
• MPN: 366-02026
• Product Name: 2WNC Ss FxUM 0.5/4.00 + SAS81.33U
• Valve Type: 2-way globe valve
• Configuration: Normally closed (NC)
• Trim / Material: Stainless steel
• Cv (Flow Coefficient): 4
• Valve Size: 0.5 in (1/2 in)
• Connection: NPT
• Actuator Type: Electric spring-return actuator
• Actuator Model: SQS85.53U / SAS81.33U family
• Input Voltage: 24V
• Power Supply: Electric
• Close-off Pressure: 50 PSI
• NEMA Rating: Nema 1
• Flow Characteristic: Modified equal percentage
• ANSI Rating: ANSI 250
• Leakage Rate: Class IV (0.01% of Cv)
• Control Input: Floating
• Fail-Safe: Spring return
• Fail Safe Position: Normally closed
• Country of Origin: United States of America
• RoHS Compliance: Since: 08.12.2015
• REACH Information: Contains candidate list substance lblREACHCode5866 > 0,1% (w/w)
