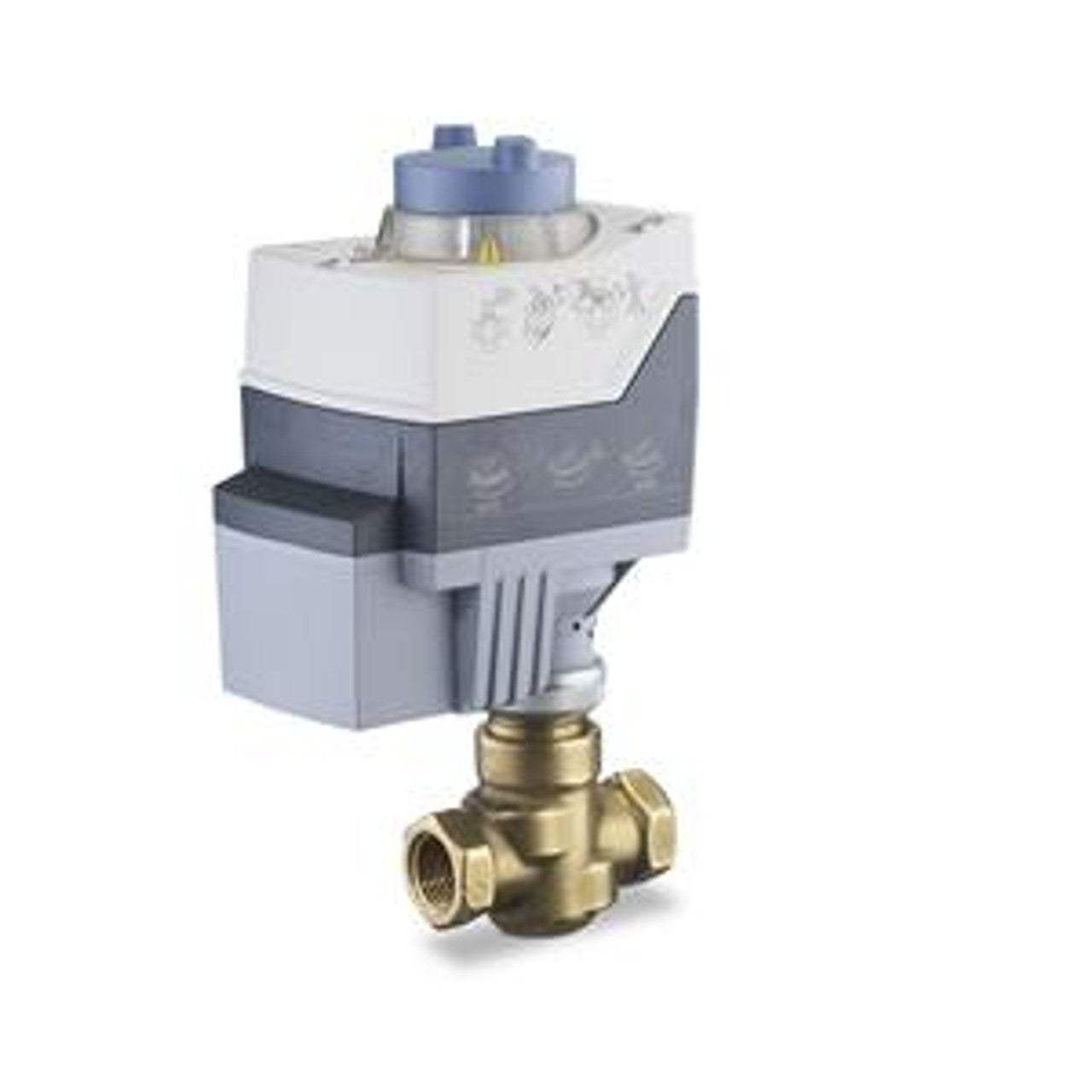

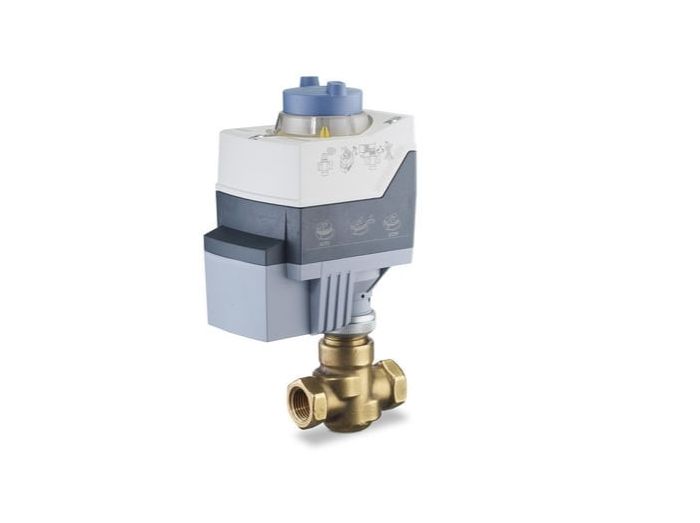

Siemens 366-02017 MT Series 2W Valve 0.63Cv 24V (1/2 FxF) Replacement MPN

Product Description

The Siemens 366-02017 MT Series 2W Valve is engineered for ANSI 250 NC Mod Eq Pct systems. This valve is effective for regulating hot or chilled water and low-pressure steam in various terminal units. It comes with a 0.63Cv rating and operates on a twenty-four volt system. The valve features a one-half inch FxF connection.

• Floating spring return or non-spring electric actuators
• Compatible with interchangeable pneumatic or electronic actuators
• Low leakage rate rated ANSI Class IV

Product Highlights

This valve is robust and reliable, essential for HVAC applications that require efficient fluid control.

Product Information

Standard Information

• Brand: Siemens
• Model Number: 366-02017

Technical Specifications

• Control Input: Floating
• CV / GPM: 0.63 Cv
• Spring Return: Spring Return
• Type: Valve (Globe)
• Valve Size: 0.5 inch - 2 Way
• Voltage: 24V
• Max Close-Off Pressure: 95 psi
• Body Pattern: Two-Way
• Valve Style: Globe
