Siemens 366-02011 2Wnc Br Fxum 0.5/4.00 Electric (0.5 in) SAS81.33U

Product Description

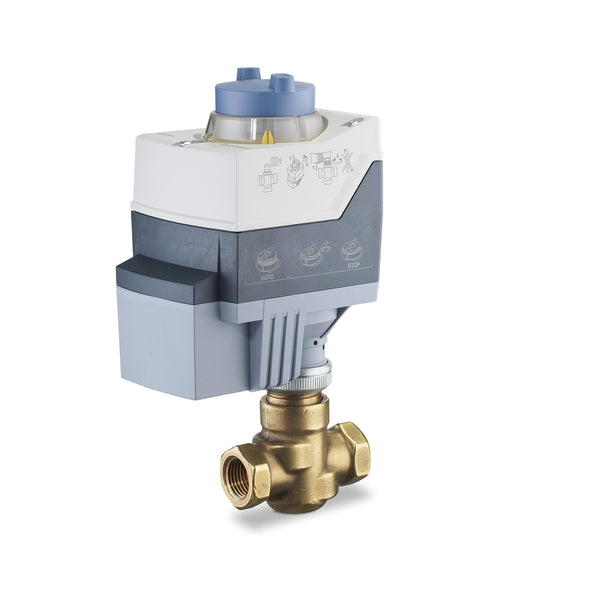

Siemens 366-02011 is a 2-way normally closed globe valve assembly with an electric actuator identified as SAS81.33U. The assembly has a 0.5 in NPT connection, a 4 Cv flow coefficient, and brass construction for valve components. It provides spring-return fail-safe operation (normally closed), supports floating control input, and is suitable for HVAC control applications; the assembly is rated to ANSI 250 and can operate at 24V.

• 2-way normally closed globe valve assembly; 0.5 in NPT connection; 4 Cv flow coefficient; brass construction
• Electric actuator SAS81.33U with floating control input, spring-return fail-safe mechanism, 24V operation
• ANSI 250 pressure rating; NEMA 1 enclosure rating; close-off pressure 50 PSI

Product Highlights

2-way globe valve assembly, 4 Cv, 1/2 in NPT, brass trim, electric spring-return actuator SAS81.33U, ANSI 250

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 366-02011

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 366-02011
• Category: Globe valve assembly
• Type: 2-way normally closed valve
• Valve Type: 2-way globe
• Valve Size: 0.5 in
• Connection: NPT
• Flow Coefficient (Cv): 4
• Body Material: Brass
• Trim Material: Brass
• Actuator: SAS81.33U
• Power Supply: Electric
• Voltage: 24V
• Control Input: Floating
• Fail-Safe Mechanism: Spring return
• Fail-Safe Position: Normally closed
• Close-off Pressure: 50 PSI
• NEMA Rating: NEMA 1
• Pressure Rating: ANSI 250
• Model / SKU: 366-02011
