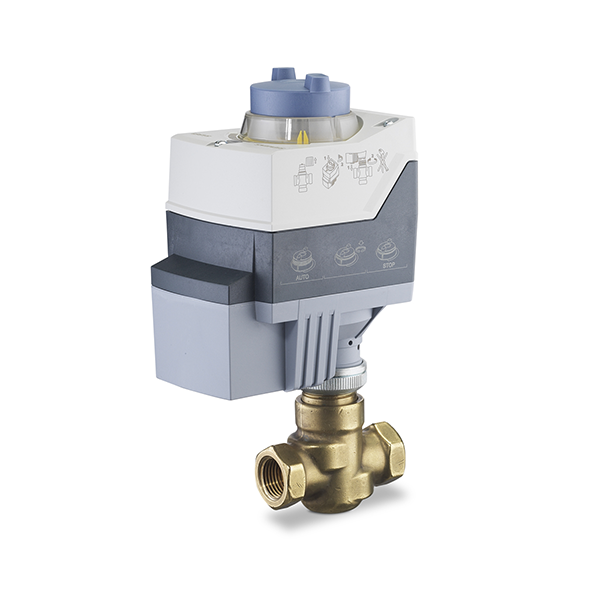

SIEMENS 365-02027 Valve Assembly | ANSI Class 250 | MT Series | 2-Way | NC | Modified Eq Pct | 3/4 In FxF | 6.3 Cv | 24 V 0-10 V SR | Elect/Mech

SIEMENS MT series valves are used for hot or chilled water or low pressure steam (<15 psig with stainless steel trim only) control on convectors, fan coil units, unit conditioners, radiation, reheat coils and similar terminal units.

Floating Spring Return or Non
Spring Electric Actuators

Interchangeable Pneumatic or Electronic Actuators

Electronic and Pneumatic Actuators

No Tools Required for Installation

Low Leakage Rate (ANSI Class IV)

Direct Coupled Universal bonnet

Close off up to 160 psi
