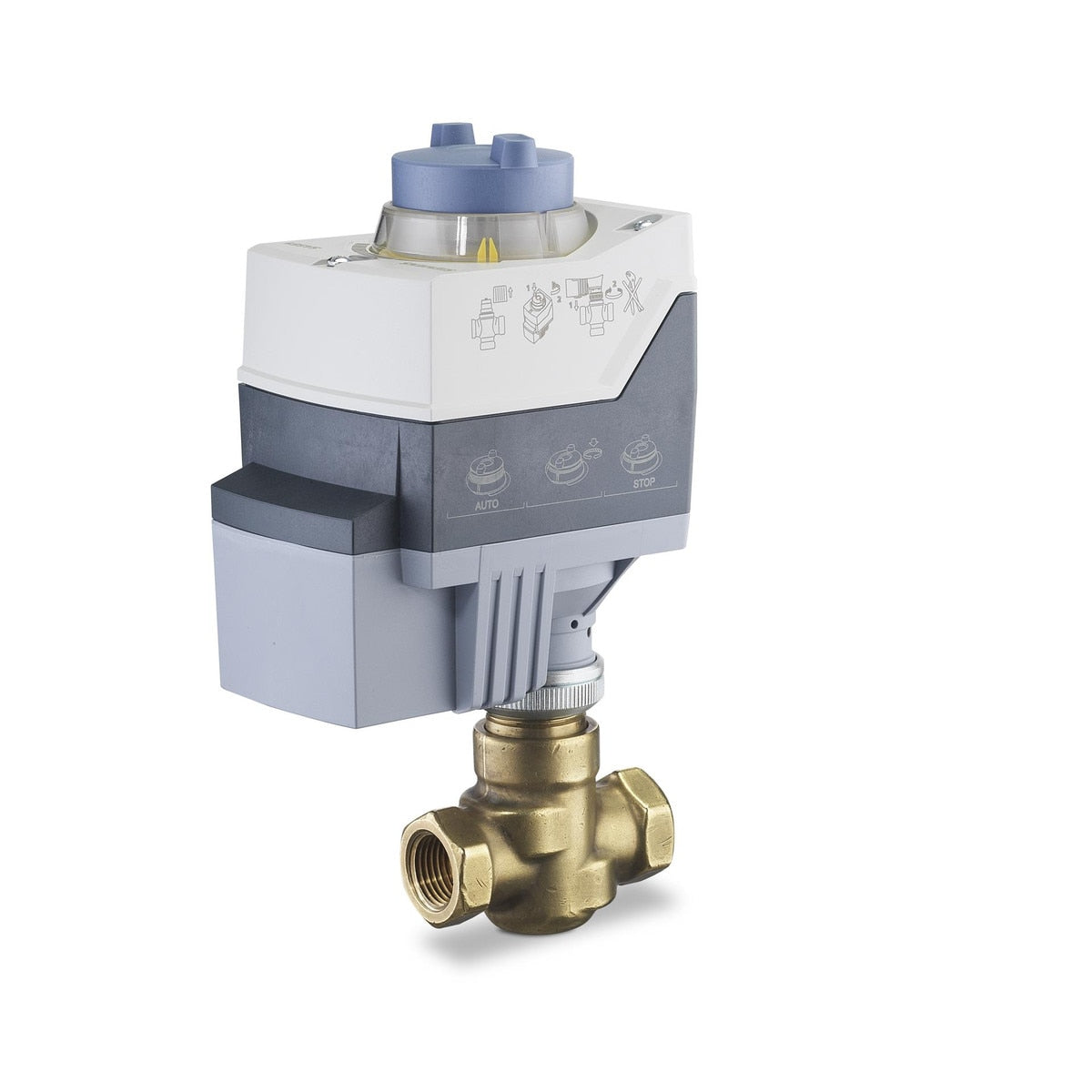

Siemens 365-02012 2-way normally closed brass globe valve 24V (3/4 inches)

Product Description

Siemens 365-02012 is a 2-way normally closed brass valve assembly with a 3/4 in. line size and a 6.3 Cv flow coefficient. The assembly includes a 24 V spring-return electro-mechanical actuator and supports proportional control signals 0-10 VDC and 4-20 mA. It has female x female connections, a modified equal-percentage flow characteristic, ANSI Class 250 pressure rating, and is intended for hot or chilled water HVAC and hydronic control.

• 3/4 in line size; flow coefficient (Cv) 6.3; female x female (FxF) connection
• 24 V spring-return electro-mechanical actuator; supports 0-10 VDC and 4-20 mA proportional control; 90 in-lb torque; 30 s run time; <14 s spring return
• Forged brass body with brass trim; modified equal-percentage flow; ANSI Class 250 pressure rating; Class IV leakage (0.01% of Cv)

Product Highlights

2-way normally closed brass globe valve assembly with 24 V spring-return actuator and 6.3 Cv for HVAC and hydronic temperature control.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 365-02012

Technical Specifications

• Manufacturer: Siemens
• MPN: 365-02012
• Type: 2-way normally closed globe valve assembly
• Line size: 3/4 in
• Connection: Female x female (FxF)
• Flow coefficient (Cv): 6.3
• Body material: Forged brass
• Trim material: Brass
• Flow characteristic: Modified equal percentage
• Pressure rating: ANSI Class 250
• Leakage rate: Class IV (0.01% of Cv)
• Actuator type: Spring-return electro-mechanical (modulating)
• Actuator model: SAS61.33U
• Series: Powermite 599 MT Series
• Actuator voltage: 24 V AC/DC
• Control signal: 0-10 VDC; 4-20 mA
• Torque: 90 in-lb
• Run time: 30 seconds
• Spring return time: <14 seconds
• Close-off pressure: 40 PSI
• NEMA rating: NEMA 1
• Typical application: Control of hot or chilled water
