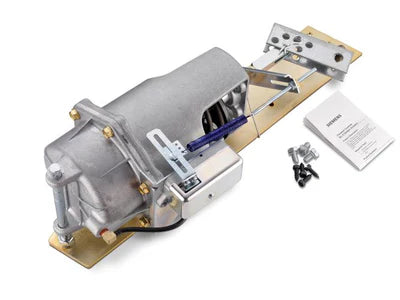

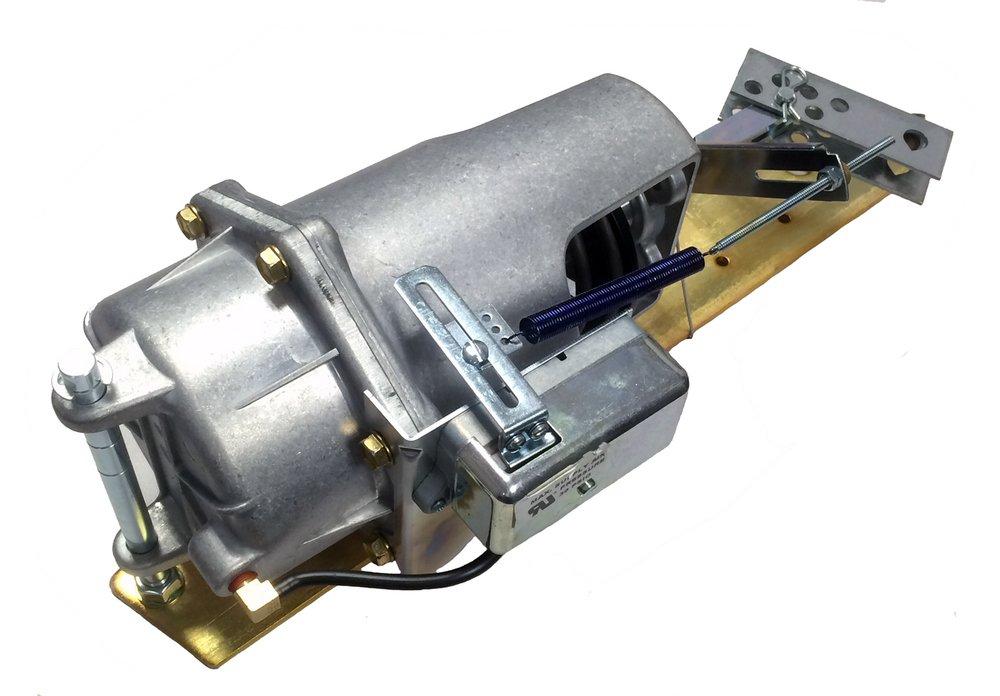

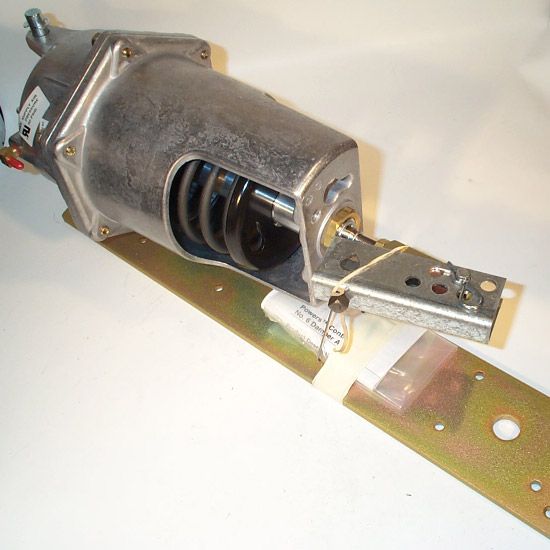

Siemens 332-3011 Pneumatic Damper Actuator Assembly No. 6 with Positioning Relay

Product Description

Unlock superior control and reliability with the Siemens 332-3011 Pneumatic Damper Actuator. This robust unit is engineered for demanding HVAC applications, featuring a pneumatic mechanism that ensures precision and durability.

• Integrated pivot and positioning relay for precise operation.
• 4-inch stroke with 8 to 13 psi spring range catering to heavy-duty needs.
• UL recognized for fire and smoke applications, ensuring regulatory compliance.

Product Highlights

The Siemens 332-3011 actuator is particularly designed for large dampers and HVAC applications that require robust, dependable operation. Its high torque output and adaptable configuration make it ideal for commercial building management.

Product Information

Standard Information

• Brand: Siemens
• MPN: 332-3011

Technical Specifications

• Actuator Type: Pneumatic
• Effective Diaphragm Area: 17.9 sq in
• Stroke Size: 4 inches
• Spring Range: 8-13 psi
• Operating Temperature: -20 to 200°F
• Air Connection: 1/8 FNPT
• Maximum Air Pressure: 30 psi
• Construction: All metal with replaceable diaphragm
