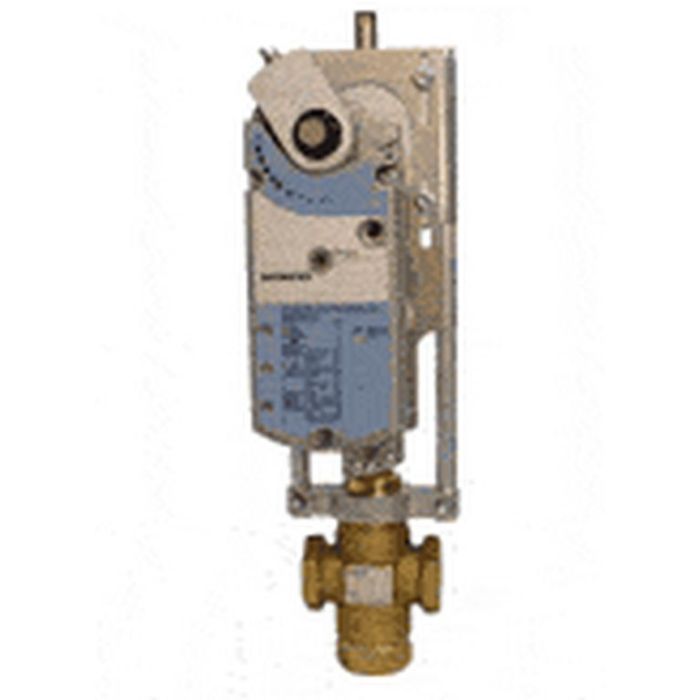

Siemens 298-03204 Globe Valve Assembly, 3 Way, 1-1/4 in. Replacement MPN

Product Description

The Siemens Globe Valve Assembly offers precise control in HVAC systems. The model number 298-03204 features a three-way valve ideal for directing flow in heating and cooling applications. It's designed for robust use in various environments.

• NPT thread type, 16 Cv capacity
• Direct coupled rack and pinion actuator with spring return
• Modulating control with a voltage requirement of 24 VAC and 9 VA

Product Highlights

This valve assembly is essential for effective temperature regulation in HVAC systems.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 298-03204

Technical Specifications

• Housing: NEMA 2
• Service: Water, Glycol Solutions To 50%
• Power Consumption: 9 VA Running, 5 VA Holding
• Close-Off Pressure: 100 psi
• Flow Characteristic: Equal Percentage (NC Port) And Linear Flow (NO Port)
• Operating Conditions: -25 F To 130 F (-32 C To 55 C)
• Electrical Connection: 3 ft. 18 AWG Cable
