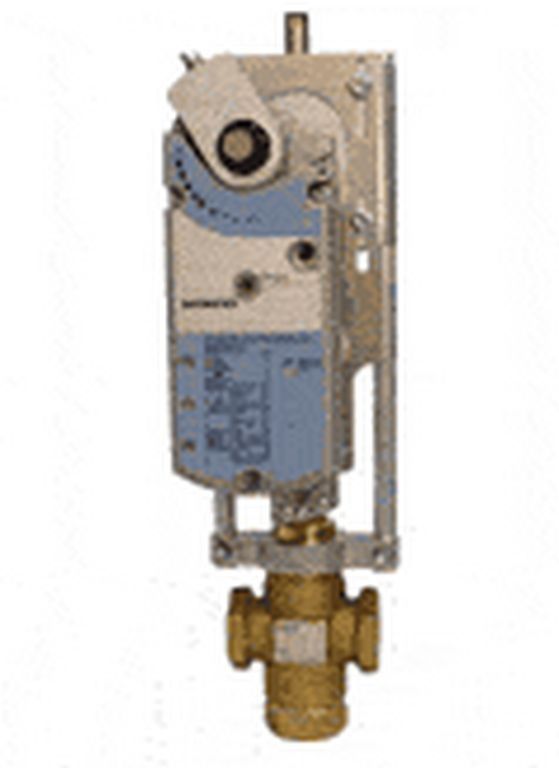

Siemens 298-03201 Globe Valve Assembly, 3 Way, 1/2 in.

Product Description

The Siemens 298-03201 Globe Valve Assembly is designed for use in HVAC control systems. This valve features a three-way operation and is suitable for residential and commercial applications. The unit connects using NPT thread and incorporates a brass trim for durability.

• Modulating control with a range of zero to ten VDC
• Spring return mechanism for reliable operation
• Compatible with water and glycol solutions up to fifty percent

Product Highlights

Ideal for proper flow management in HVAC systems, ensuring effective temperature control and system efficiency.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 298-03201

Technical Specifications

• Service: Water, Glycol Solutions to 50%
• Housing: NEMA 2
• Flow Characteristic: Equal Percentage (NC Port) and Linear Flow (NO Port)
• Operating Conditions: -25 F to 130 F (-32 C to 55 C)
• Power Consumption: 9 VA Running, 5 VA Holding
• Close-Off Pressure: 250 psi
• Electrical Connection: 3 ft. 18 AWG Cable
