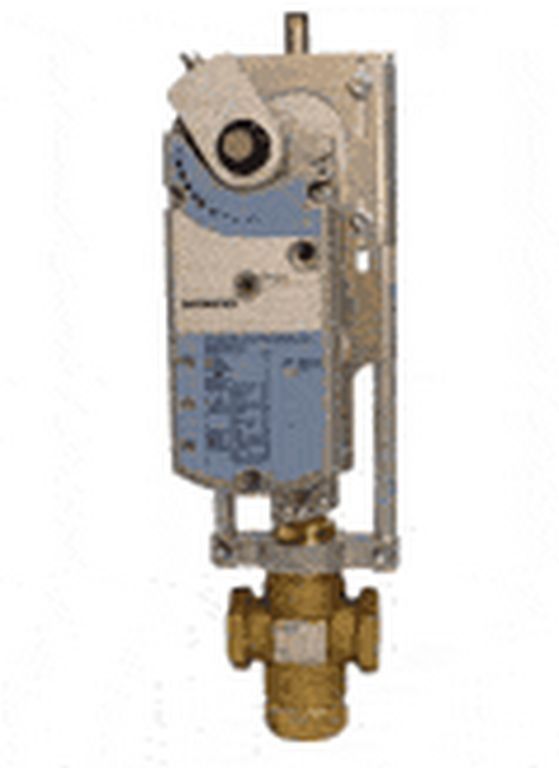

Siemens 298-03198 Globe Valve Assembly, 3 Way, 1/2 in.

Product Description

The Siemens 298-03198 is a globe valve assembly that features a three-way configuration and is designed for a half-inch connection. This valve operates on a direct-coupled rack and pinion actuator with a spring return. It is suitable for various applications requiring modulating control with a voltage supply of 24 VAC.

• Flow characteristic: Equal percentage and linear flow
• Close-off pressure rated at 250 psi
• Power consumption of nine VA during operation

Product Highlights

This valve is designed for efficient flow control in HVAC systems and can handle water and glycol solutions up to fifty percent concentration.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 298-03198

Technical Specifications

• Housing: NEMA 2
• Service: Water, glycol solutions to fifty percent
• Power Consumption: 9 VA running, 5 VA holding
• Close-Off Pressure: 250 psi
• Flow Characteristic: Equal percentage (NC port) and linear flow (NO port)
• Operating Conditions: -25 F to 130 F (-32 C to 55 C)
• Electrical Connection: 3 ft. 18 AWG cable
