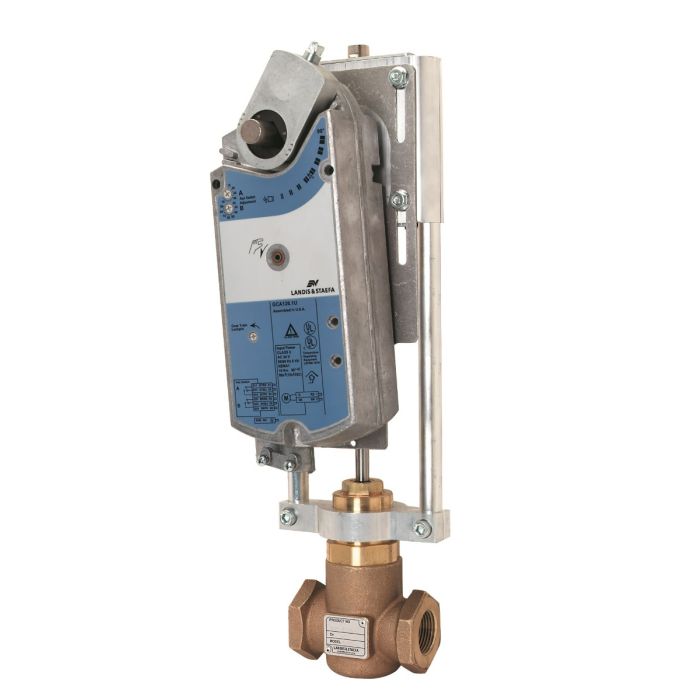

Siemens 298-03170 Globe Valve Assembly, 2 Way, 2 in. Replacement MPN 298-03170

Product Description

The Siemens 298-03170 is a globe valve assembly designed for two-way operation. This valve has a two-inch size and features direct coupled rack and pinion actuator technology. It is suitable for controlling the flow of various fluids in HVAC systems.

• ANSI Class 250 rated
• NPT connection type
• Modulating control for precise flow regulation

Product Highlights

This globe valve assembly provides reliable service and excellent control. Designed for use with saturated steam, water, and glycol solutions up to fifty percent concentration, it can operate in temperatures ranging from -25 degrees Fahrenheit to 130 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 298-03170

Technical Specifications

• Power Consumption: 9 VA running, 5 VA holding
• Close-Off Pressure: 36 psi
• Flow Characteristic: Equal Percentage
• Electrical Connection: 3 ft. 18 AWG cable
• Service: Saturated steam, water, glycol solutions to 50%
• Operating Conditions: -25 F to 130 F (-32 C to 55 C)
• Housing: NEMA 2
