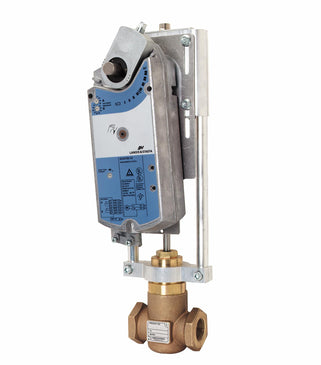

Siemens 298-03164 Globe Valve Assembly, 2 Way, 1/2 in. Replacement MPN

Product Description

The Siemens globe valve assembly, MPN 298-03164, is a two-way valve designed for HVAC systems. It measures half an inch and features a direct coupled rack and pinion actuator with a spring return. This valve is suitable for modulating control with a voltage of twenty-four VAC. The following key features are included:

• Brass trim with ANSI Class 250 rating.
• Modulating control with zero to ten VDC signal.
• Capable of handling saturated steam, water, and glycol solutions to fifty percent.

Product Highlights

This valve is constructed for durability and reliability in HVAC applications. It operates efficiently in conditions ranging from minus twenty-five degrees Fahrenheit to one hundred thirty degrees Fahrenheit. Its equal percentage flow characteristic ensures optimal performance.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 298-03164

Technical Specifications

• Power Consumption: 9 VA Running, 5 VA Holding
• Close-Off Pressure: 250 psi
• Operating Conditions: -25 F To 130 F (-32 C To 55 C)
• Electrical Connection: 3 ft. 18 AWG Cable
• Housing: NEMA 2
• Flow Characteristic: Equal Percentage
• Service: Saturated Steam, Water, Glycol Solutions To 50%
