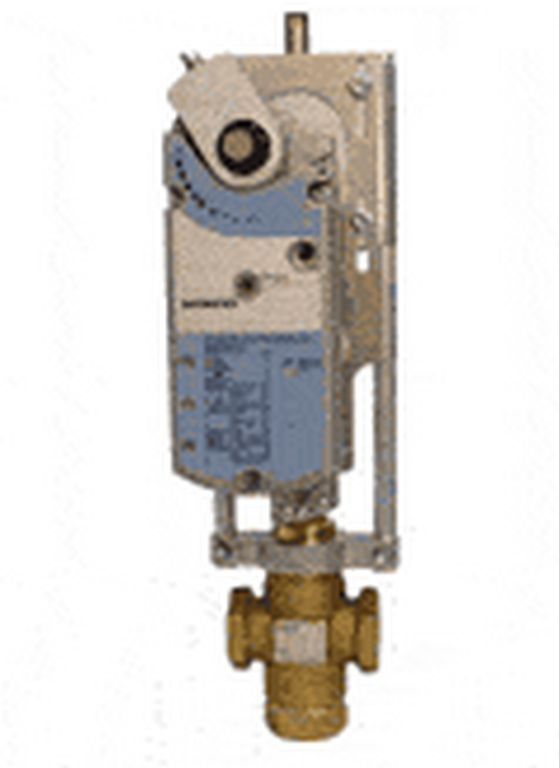

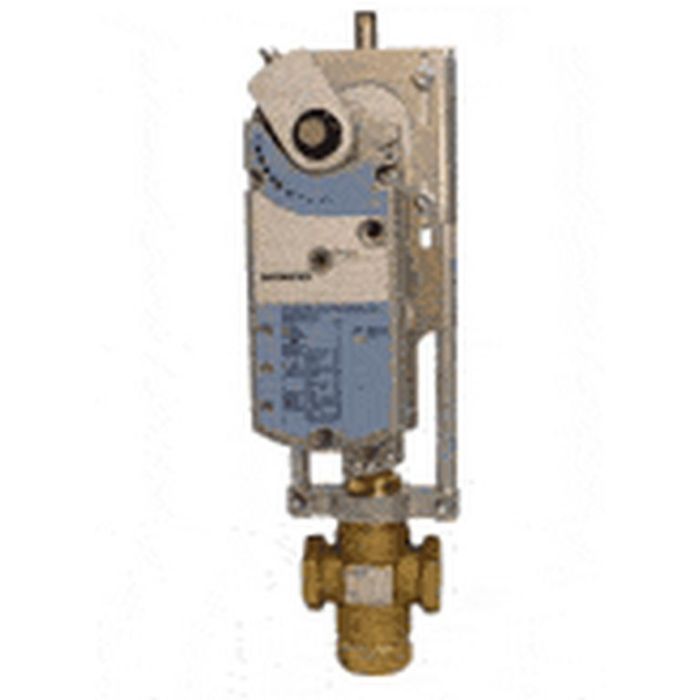

Siemens 298-03150 Globe Valve Assembly, 3 Way, 1-1/4 in.

Product Description

The SIEMENS 298-03150 is a globe valve assembly with a 3-way configuration and a 1-1/4 inch size. It features NPT connections, a 16 Cv flow coefficient, and stainless steel trim. Designed with a direct-coupled rack and pinion actuator and spring return, it operates at 24 VAC with 9 VA power consumption, offering modulating control from 0 to 10 VDC.

• ANSI Class 250
• Stainless Steel Trim
• Direct Coupled Rack And Pinion Actuator

Product Highlights

Globe valve assembly with NPT connections, stainless steel trim, and spring return.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 298-03150
• Country of Origin: Unknown

Technical Specifications

• Service: Water, Glycol Solutions To 50%
• Power Consumption: 9 VA Running, 5 VA Holding
• Close-Off Pressure: 100 psi
• Flow Characteristic: Equal Percentage (NC Port) And Linear Flow (NO Port)
• Operating Conditions: -25 F To 130 F (-32 C To 55 C)
• Electrical Connection: 3 ft. 18 AWG Cable
• Trim: Stainless Steel
• Actuator: 599-03609
• Fail-Safe: Spring Return
• Pipe Size: 1.25 in
• Connection: NPT
• Valve Type: 3-Way
• Flow Pattern: Mixing
• Valve Number: 599-03150
• Fail Safe Position: A - AB Closed
• CV / GPM: 16 Cv
• Spring Return: Spring Return
• Type: Valve (Globe)
• Valve Size: 1.25" - 3 Way
• Voltage: 24V
• Brand: Siemens
• Control Input: Modulating
• Manufacturer Part Number: 298-03150
• Manufacturer: Siemens Building Technologies
• Product Series: FLOWRITE
• Family Series: Siemens Building Technologies HVAC Valves, FLOWRITE Series
• Description: 3WMX,SS,=pct.,FXF,1.25/16 +GCA161
• Capacity: 16 Cv
• Connection Type: Threaded
• Max Close-Off Pressure: 148 psi
• Body Pattern: Three-Way Mixing
• Valve Style: Globe
• Medium Temperature Range: 20-250 °F
• Nominal Voltage: 24 VAC
• Fail-Safe Mode: Spring Normally Closed
• Approvals: cUL, UL
• Comments: ANSI Class 250, 4-20 mA or 0-10 VDC Control Signal
