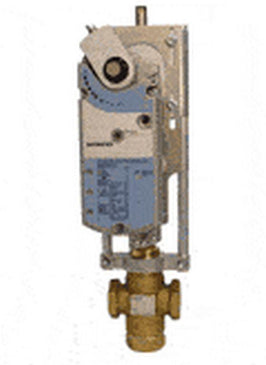

Siemens 298-03149 Globe Valve Assembly, 3 Way, 1 in. Replacement MPN

Product Description

The Siemens globe valve assembly, MPN 298-03149, is designed for precise control in HVAC systems. This product features a three-way design and is perfect for applications requiring efficient regulation of fluid flow.

• NPT connection and ten flow coefficient (Cv)
• Stainless steel trim with direct coupled rack and pinion actuator
• Spring return operation and modulating control with a range from 0 to 10 VDC

Product Highlights

This valve assembly provides reliable operation across various HVAC applications.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 298-03149

Technical Specifications

• Housing: NEMA 2
• Service: Water, glycol solutions to 50%
• Power Consumption: 9 VA running, 5 VA holding
• Close-Off Pressure: 173 psi
• Flow Characteristic: Equal percentage for NC port, linear flow for NO port
• Operating Conditions: -25 F to 130 F (-32 C to 55 C)
• Electrical Connection: 3 feet, 18 AWG cable
