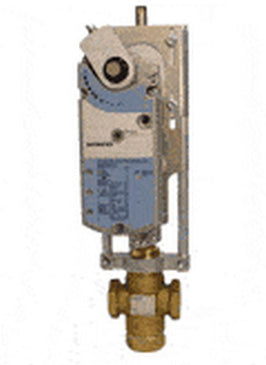

Siemens 298-03148 Globe Valve Assembly, 3 Way, 3/4 in. Replacement MPN

Product Description

The Siemens Globe Valve Assembly, MPN 298-03148, is designed for precise control in HVAC applications. This component features a three-way valve that connects 3/4 inch pipelines effectively. It is direct coupled with a rack and pinion actuator and operates on a 24 VAC power supply.

• ANSI Class 250
• Stainless steel trim for enhanced durability
• Modulating control with 0 to 10 VDC input

Product Highlights

The valve assembly is suitable for water and glycol solutions, operating up to 50 percent concentration. An integral spring return mechanism ensures reliable closure.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 298-03148

Technical Specifications

• Housing: NEMA 2
• Service: Water, Glycol Solutions To 50%
• Power Consumption: 9 VA Running, 5 VA Holding
• Close-Off Pressure: 250 psi
• Flow Characteristic: Equal Percentage (NC Port) And Linear Flow (NO Port)
• Operating Conditions: -25 F To 130 F (-32 C To 55 C)
• Electrical Connection: 3 ft. 18 AWG Cable
