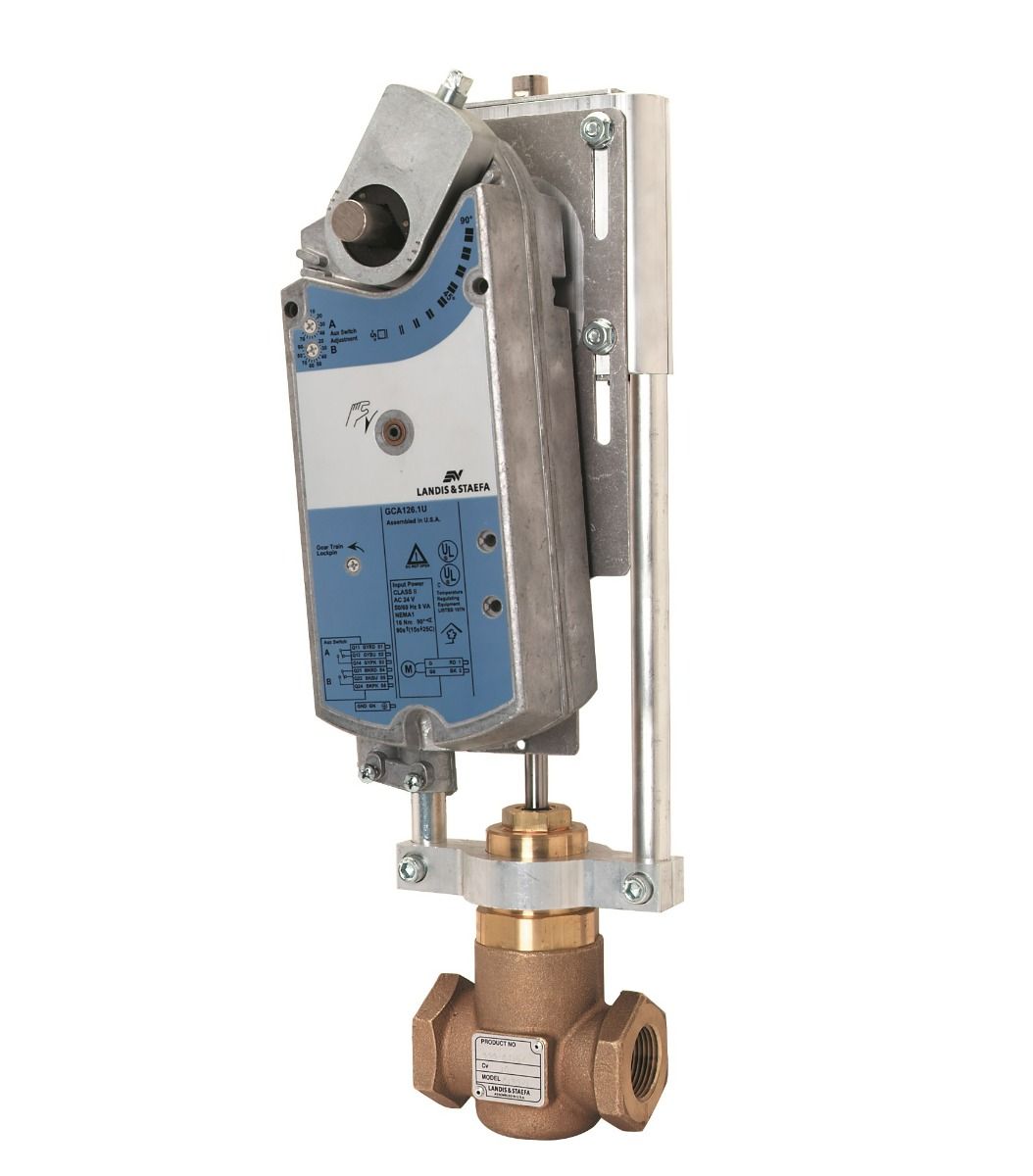

Siemens 298-03131 Globe Valve Assembly 1 in. 24 VAC 10 Cv

Product Description

The Siemens Globe Valve Assembly, MPN 298-03131, is designed for efficient control in HVAC systems. This valve features direct coupling to a rack and pinion actuator and operates at 24 VAC with a power consumption of 9 VA. It is suitable for applications involving saturated steam, water, and glycol solutions.

• ANSI Class 250 rating
• Normally closed with modulating control
• Operating temperature range from -25 F to 130 F

Product Highlights

The Siemens Globe Valve Assembly is engineered for reliable performance in demanding environments. With its robust design, it ensures precise control for optimal system efficiency.

Product Information

Standard Information

• Brand: Siemens
• Part #: 298-03131

Technical Specifications

• Power Consumption: 9 VA running, 5 VA holding
• Close-Off Pressure: 173 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -25 F to 130 F (-32 C to 55 C)
• Electrical Connection: 3 ft. 18 AWG Cable
• Housing: NEMA 2
• Service: Saturated steam, water, glycol solutions to 50%
