Product Description

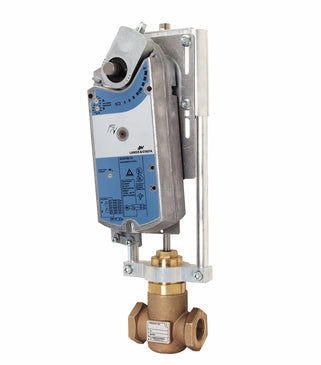

The Siemens 298-03114 is a globe valve assembly designed for HVAC control. This two-way valve has a size of one and one-quarter inches.
- ANSI Class 250 for durability and strength
- Direct coupled rack and pinion actuator with spring return
- Modulating control with 0 to 10 VDC signal input
Product Highlights
This valve is ideal for applications where precise flow control is needed.
Product Information
Standard Information
-
Brand: Siemens
-
Part Number: 298-03114
Technical Specifications
-
Housing: NEMA 2
-
Service: Saturated Steam, Water, Glycol Solutions To 50%
-
Power Consumption: 9 VA Running, 5 VA Holding
-
Close-Off Pressure: 92 psi
-
Flow Characteristic: Equal Percentage
-
Operating Conditions: -25 F To 130 F (-32 C To 55 C)
-
Electrical Connection: 3 ft. 18 AWG Cable
