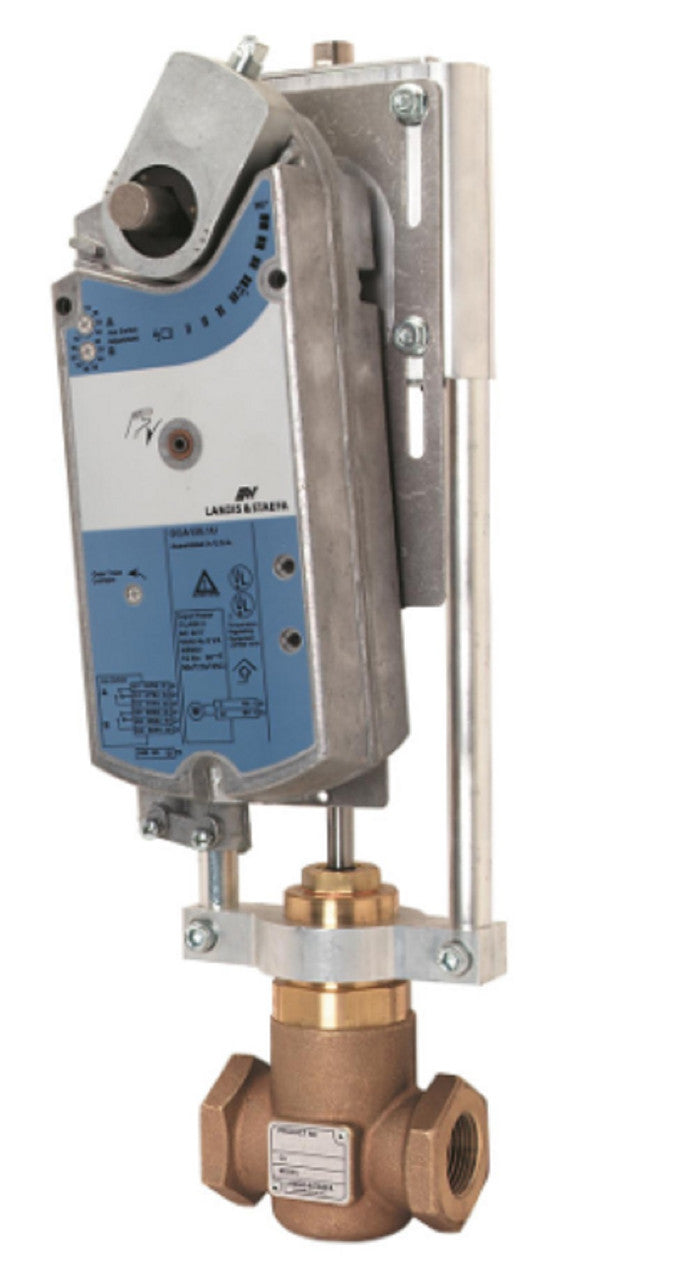

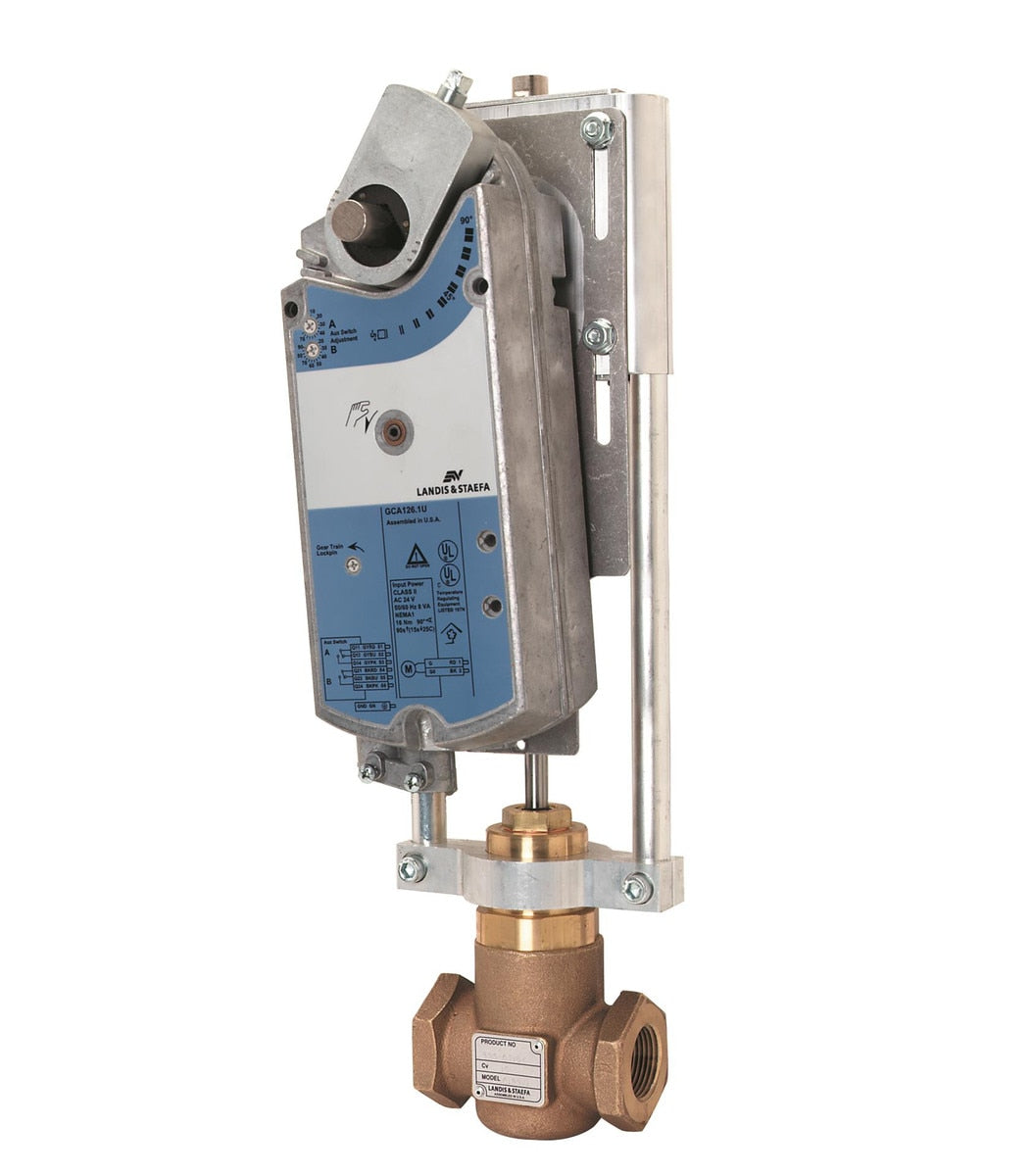

Siemens 298-03112 Globe Valve Assembly, 2 Way, 3/4 in.

Product Description

The SIEMENS 298-03112 is a 2-way globe valve assembly with a 3/4 inch NPT connection and a 6.3 Cv flow coefficient. It features stainless steel trim and a direct-coupled rack and pinion actuator with spring return. Designed for modulating control from 0 to 10 VDC, it operates on 24 VAC with a power consumption of 9 VA.

• ANSI Class 250
• Suitable for saturated steam and water/glycol solutions up to 50%
• Features equal percentage flow characteristic

Product Highlights

This valve assembly is ideal for HVAC applications requiring precise flow control and reliable performance.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 298-03112
• Country of Origin: US

Technical Specifications

• Service: Saturated Steam, Water, Glycol Solutions To 50%
• Power Consumption: 9 VA Running, 5 VA Holding
• Close-Off Pressure: 231 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -25 F To 130 F (-32 C To 55 C)
• Electrical Connection: 3 ft. 18 AWG Cable
• Manufacturer: Siemens
• Brand: SIEMENS
• Model / MPN: 298-03112
• CV: 6.3
• Trim: Stainless Steel
• Actuator: 599-03609
• Assembly: Assembly
• Fail-Safe: Spring Return
• Pipe Size: 0.75 in
• Connection: NPT
• Valve Type: 2-Way
• Power Supply: Electric
• Valve Number: 599-03112
• Fail Safe Position: Normally Open
• Product Series: FLOWRITE
• Manufacturer Part Number: 298-03112
• Family Series: Siemens Building Technologies HVAC Valves, FLOWRITE Series
• Description: 2WNO,SS,=pct.,FXF, .75/6.3+GCA161
• Capacity: 6.3 Cv
• Connection Type: Threaded
• Max Close-Off Pressure: 231 psi
• Body Pattern: Two-Way
• Valve Style: Globe
• Medium Temperature Range: 20-250 °F
• Nominal Voltage: 24 VAC
• Fail-Safe Mode: Spring Normally Closed
• Approvals: cUL, UL
• Comments: ANSI Class 250, 4-20 mA or 0-10 VDC Control Signal
