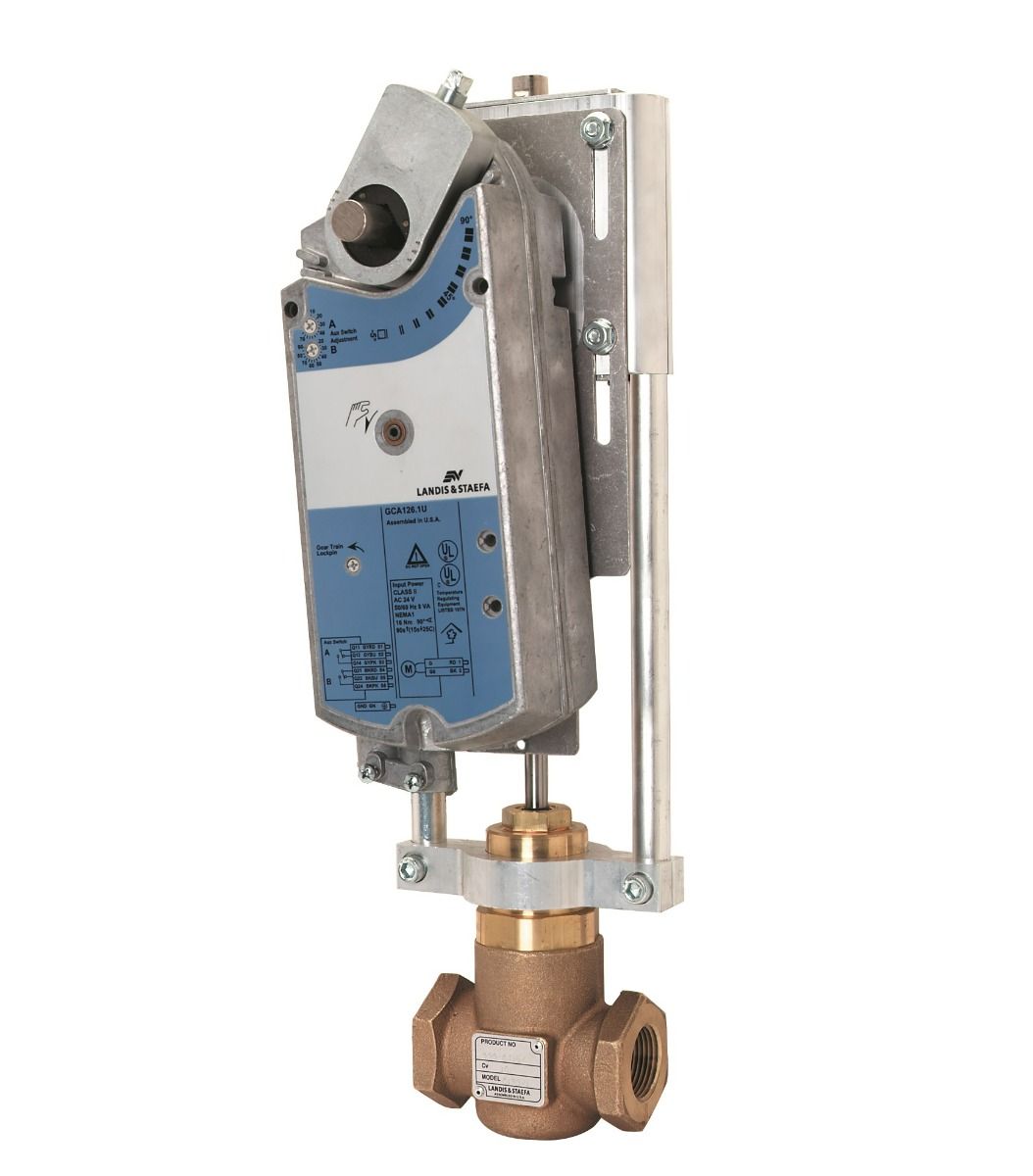

Siemens 298-03007 Globe Valve Assembly 2 Way 1-1/2 in.

Product Description

The Siemens 298-03007 Globe Valve Assembly is a two-way valve designed for use in various HVAC applications. This valve has a one and a half inch size with stainless steel trim and a direct coupled rack and pinion actuator. The actuator features a spring return function and operates at 24 VAC with a power consumption of 9 VA. This configuration is normally open and allows for modulating control from 0 to 10 VDC.

• ANSI Class 250 rating
• NEMA 2 housing for protection
• Compatible with saturated steam, water, and glycol solutions

Product Highlights

This globe valve is efficient and reliable for managing fluid flow in heating and cooling systems. It operates within a temperature range of -25 Fahrenheit to 130 Fahrenheit, making it suitable for various environments.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 298-03007
• Minimum Order Quantity: 1

Technical Specifications

• Power Consumption: 9 VA Running, 5 VA Holding
• Close-Off Pressure: 59 psi
• Flow Characteristic: Linear
• Operating Conditions: -25 F to 130 F (-32 C to 55 C)
• Electrical Connection: 3 ft. 18 AWG Cable
• Service: Saturated steam, water, glycol solutions up to 50%
