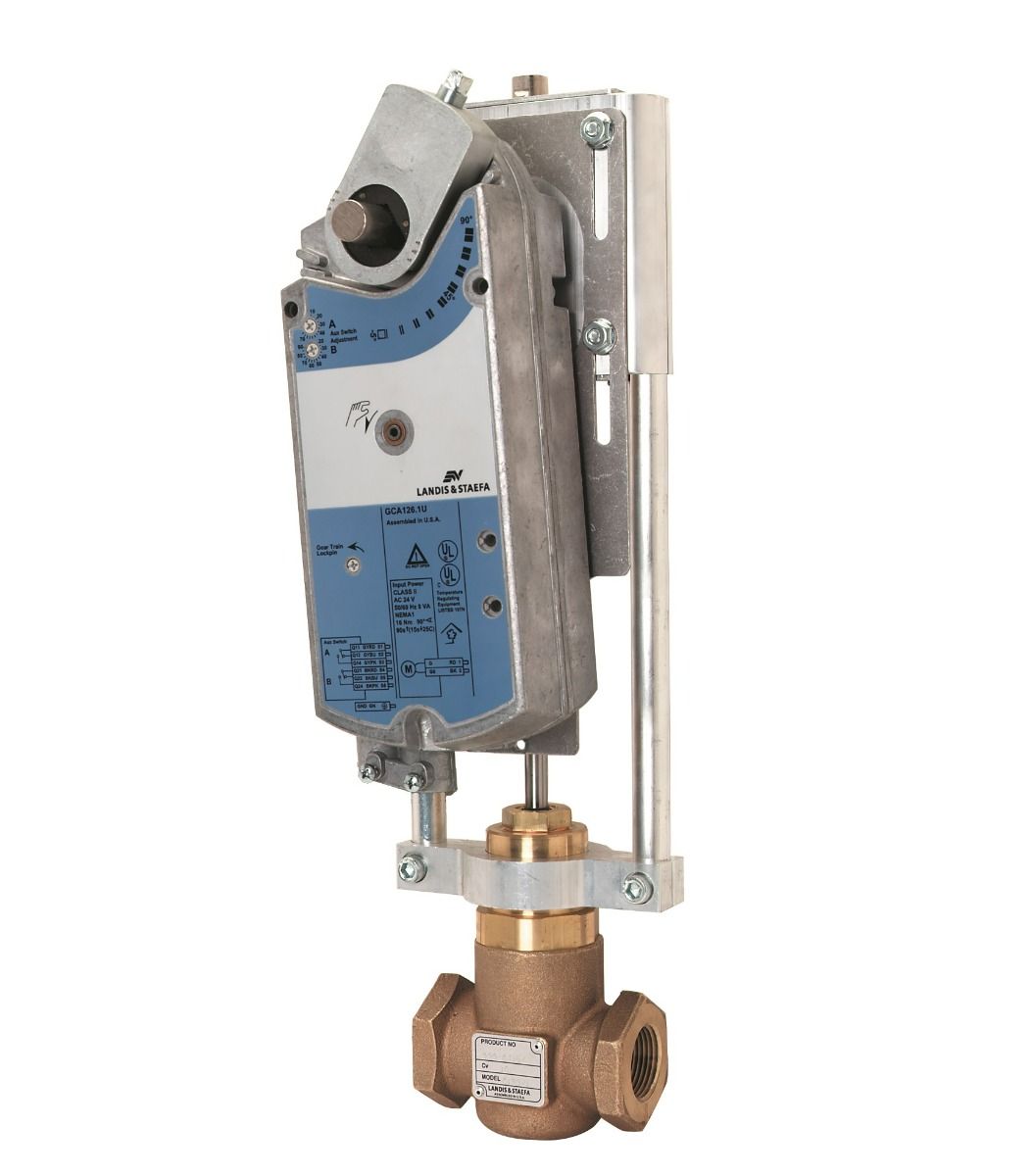

Siemens 298-03006 Globe Valve Assembly, 2 Way, 1-1/4 in.

Product Description

The Siemens Globe Valve Assembly with MPN 298-03006 is designed for reliable modulating control in HVAC systems. This valve features a two-way design with a one and one-fourth inch connection. It is suitable for various applications, including saturated steam, water, and glycol solutions. The assembly is equipped with a direct coupled rack and pinion actuator and supports normally open operation.

• ANSI Class 250 rated.
• Maintains performance in temperatures ranging from minus twenty-five degrees Fahrenheit to one hundred thirty degrees Fahrenheit.
• Flow characteristic is linear for stable control.

Product Highlights

This valve assembly provides efficient and effective flow control for various HVAC applications while being easy to install and maintain.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 298-03006

Technical Specifications

• Power Consumption: 9 VA Running, 5 VA Holding
• Close-Off Pressure: 92 psi
• Operating Conditions: -25 F to 130 F (-32 C to 55 C)
• Electrical Connection: 3 ft. 18 AWG Cable
• Housing: NEMA 2
• Service: Saturated Steam, Water, Glycol Solutions to 50%
• Flow Characteristic: Linear
