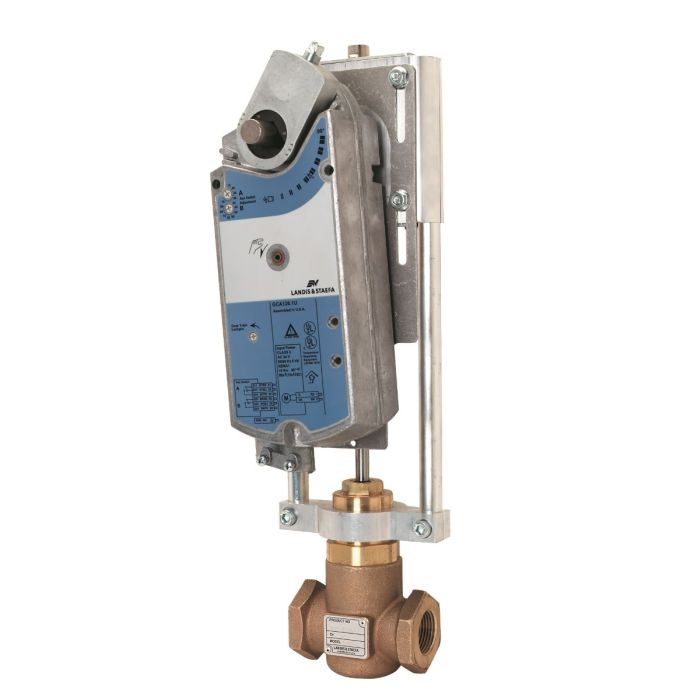

Siemens 298-03005 Globe Valve Assembly, 2 Way, 1 in.

Product Description

The Siemens 298-03005 is a globe valve assembly designed for controlling the flow of fluids in HVAC systems. It features a two-way configuration and is suitable for applications involving water, saturated steam, and glycol solutions. The valve is equipped with a direct-coupled rack and pinion actuator, ensuring reliable performance.

• ANSI Class 250
• Modulating control with a 0 to 10 VDC input
• Spring return actuator with 24 VAC operation

Product Highlights

This globe valve assembly is engineered for efficient flow regulation and is ideal for HVAC control systems.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 298-03005

Technical Specifications

• Power Consumption: 9 VA Running, 5 VA Holding
• Close-Off Pressure: 149 psi
• Flow Characteristic: Linear
• Operating Conditions: -25 F to 130 F (-32 C to 55 C)
• Electrical Connection: 3 ft. 18 AWG Cable
• Housing: NEMA 2
• Service: Saturated Steam, Water, Glycol Solutions to 50%
