Siemens 298-03000 Valve Assy 2w No 1/2 inch 1cv

Product Description

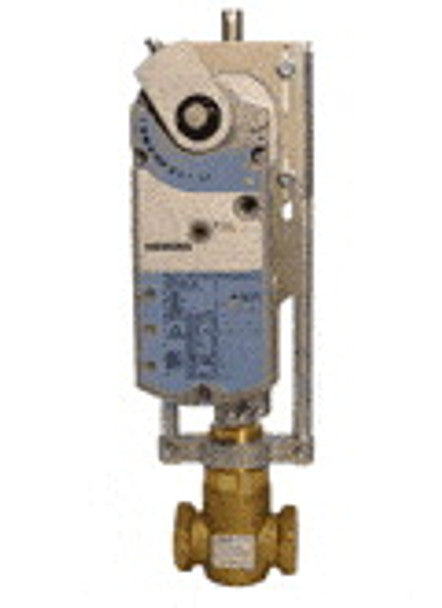

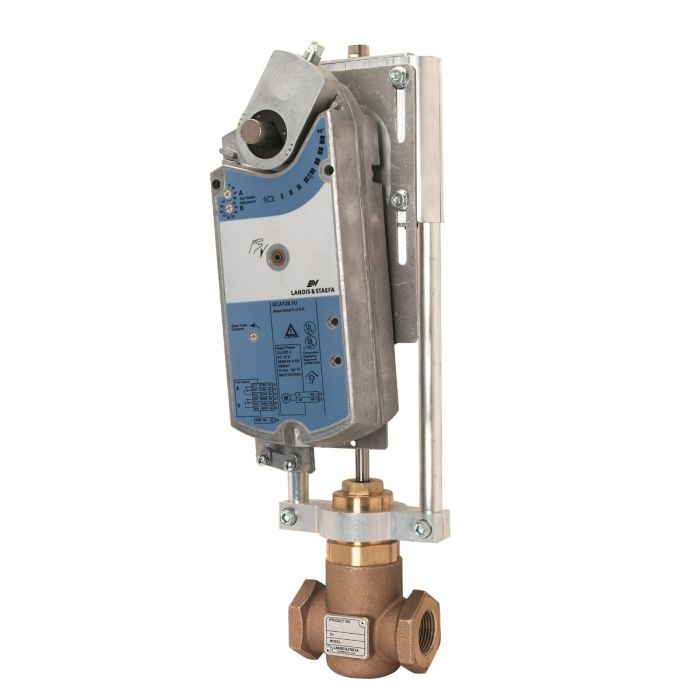

The Siemens 298-03000 Valve Assembly is a two-way normally open valve with modulating control ranging from zero to ten Vdc and a spring return mechanism. This valve assembly features a half-inch size, a one Cv flow rate, and a linear characteristic. It includes stainless steel trim with female x female end connections and meets ANSI Class 250 standards.

• Modulating control from zero to ten Vdc
• Spring return operation
• Meets ANSI Class 250 standards

Product Highlights

This valve assembly is suitable for controlling air, water, and glycol solutions up to fifty percent.

Product Information

Standard Information

• Brand: Siemens
• Category: Air Control Valves

Technical Specifications

• MPN: 298-03000
• Service: Saturated steam, water, glycol solutions to fifty percent
• Flow characteristic: Linear
• Operating conditions: Minus twenty-five degrees Fahrenheit to one hundred thirty degrees Fahrenheit
• Close-off pressure: 250 psi
• Power consumption: 9 VA running, 5 VA holding
• Electrical connection: Three feet eighteen AWG cable
• Housing: NEMA 2
• Control input: Modulating
• Cv / GPM: 1 Cv
• Spring return: Yes
• Type: Valve (Globe)
• Voltage: 24V
