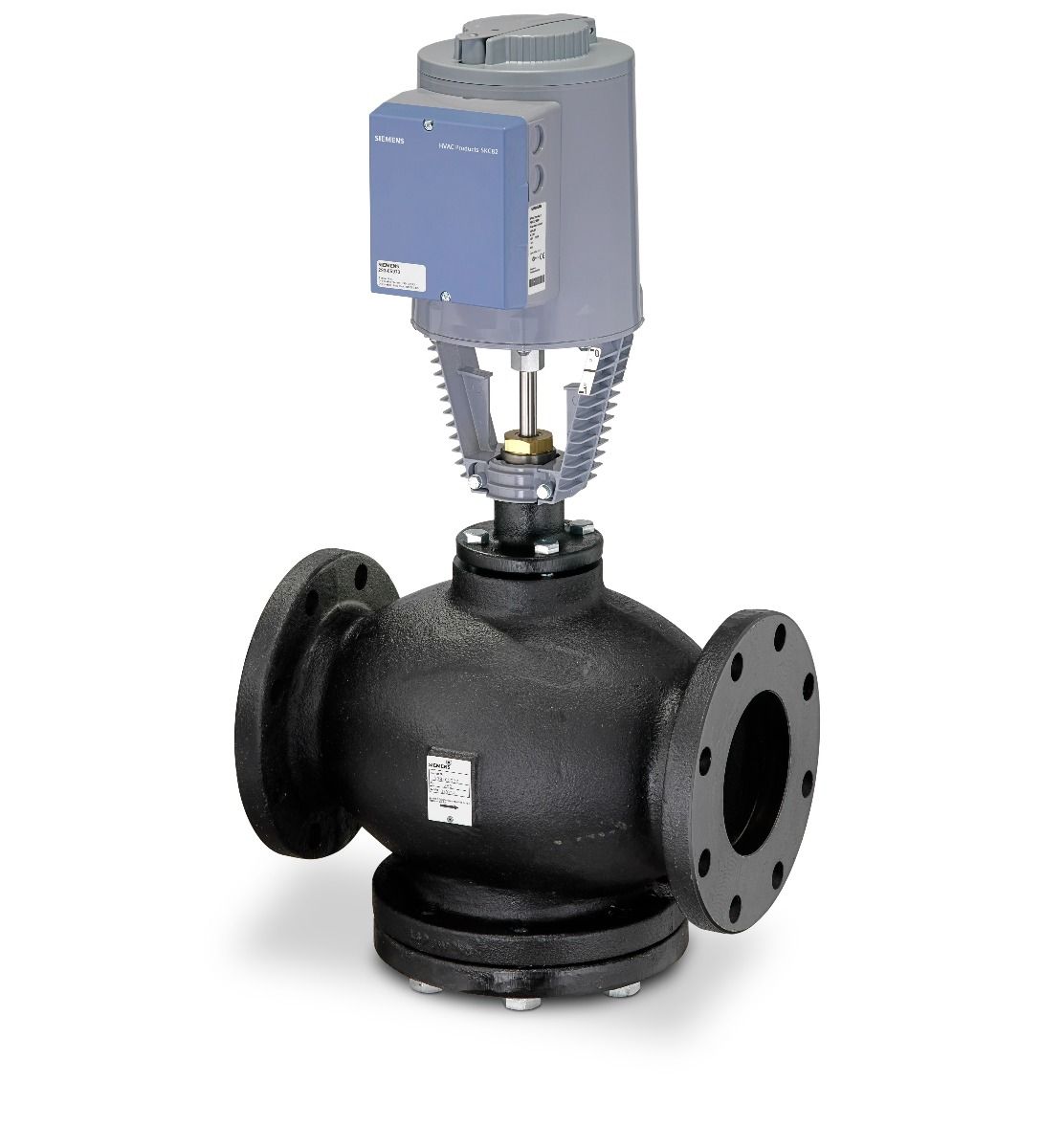

Siemens 294-06164 Globe Valve Assembly, 3 Way, 6 in. Replacement MPN

Product Description

The Siemens Globe Valve Assembly, MPN 294-06164, is a three-way valve designed for efficient flow control. It is a flanged assembly with a Cv rating of 400. This unit features a bronze trim and comes equipped with a direct-coupled actuator providing reliable performance. The actuator is spring return, rated at one thousand Newtons, and operates on twenty-four VAC with a power consumption of twenty-eight VA.

• Flanged design suitable for various installations
• Modulating control capabilities with a stroke length of one and a half inches
• Compatible with 0 to 10 VDC or 4 to 20 mA control signals

Product Highlights

This valve assembly is ideal for systems requiring precise modulating control of water and glycol solutions up to fifty percent concentration.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 294-06164
• Min Order Quantity: 1

Technical Specifications

• Housing: NEMA 1
• Service: Water, Glycol Solutions To 50%
• Power Consumption: 28 VA
• Close-Off Pressure: 17 psi
• Flow Characteristic: Equal Percentage (NC Port) And Linear Flow (NO Port)
• Operating Conditions: 5 F To 130 F (-25 C To 150 C)
