Product Description

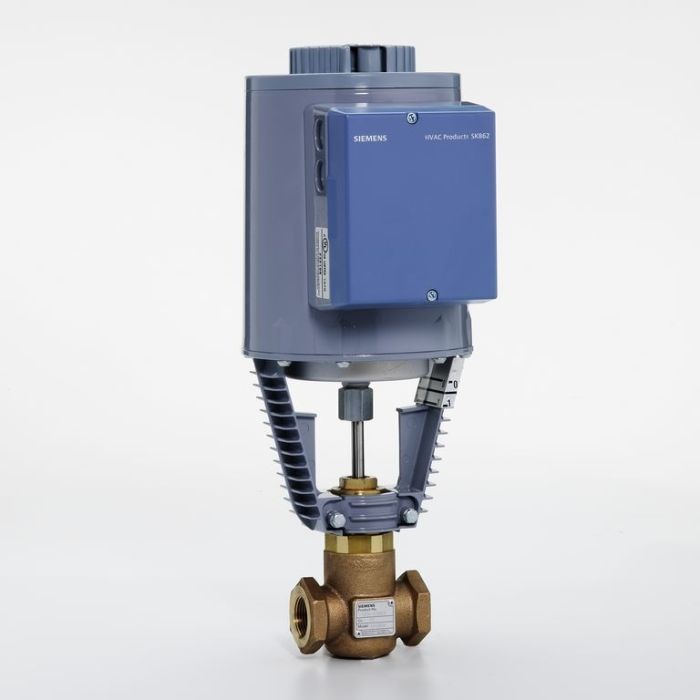

The Siemens 291-03113 is a globe valve assembly designed for a two-way control in HVAC systems. It features a one-inch size and is constructed with stainless steel trim. This valve is equipped with a direct coupled actuator that has a spring return, making it ideal for modulating control applications.
- Ten cubic feet per minute (Cv) rating
- Operates at 24 volts alternating current (VAC) with a power consumption of seventeen volt-amperes (VA)
- Stroke length of three-quarters of an inch
Product Highlights
This globe valve assembly is suitable for various applications, including heating and cooling systems. Its normally open design allows for effective flow regulation.
Product Information
Standard Information
-
Brand: Siemens
-
Part Number: 291-03113
Technical Specifications
-
Housing: NEMA 1
-
Service: Saturated steam, water, glycol solutions to fifty percent
-
Power Consumption: Seventeen VA
-
Close-Off Pressure: Two hundred fifty psi
-
Flow Characteristic: Equal percentage
-
Operating Conditions: Five degrees Fahrenheit to one hundred thirty degrees Fahrenheit (negative twenty-five degrees Celsius to positive one hundred fifty degrees Celsius)
