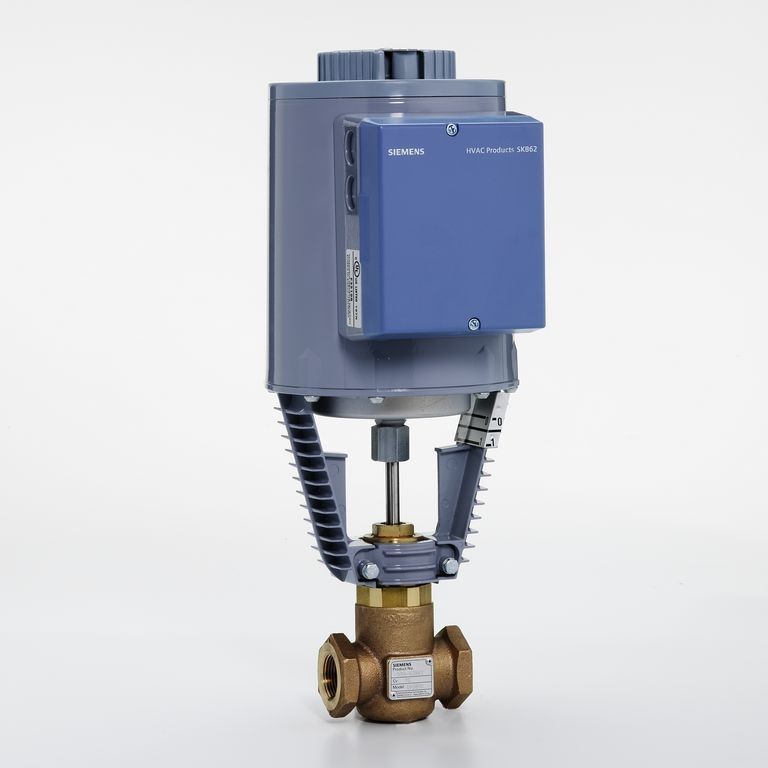

Siemens 291-03026 Globe Valve Assembly, 2 Way, 2 in.

Product Description

The Siemens 291-03026 Globe Valve Assembly is a two-way valve designed for reliable modulating control in various HVAC applications. It features a two-inch size with NPT connections and is made for high performance with a flow capacity of 40 Cv. This assembly includes a direct-coupled actuator that operates at 24 volts AC and consumes 17 VA. It is equipped with a spring return mechanism.

• Operating range suitable for saturated steam, water, and glycol solutions.
• Close-off pressure rated at 126 psi.
• Linear flow characteristic ensures consistent and accurate flow management.

Product Highlights

The valve is ideal for applications requiring precise control and reliability, making it suitable for HVAC systems.

Product Information

Standard Information

• Manufacturer: Siemens Building Technology
• Part Number: 291-03026

Technical Specifications

• Flow Capacity: 40 Cv
• Power Consumption: 17 VA
• Close-Off Pressure: 126 psi
• Operating Conditions: 5 F to 130 F (–25 C to 150 C)
• Housing: NEMA 1
• Service Compatibility: Saturated Steam, Water, Glycol Solutions to 50%
• Stroke: 3/4 in.
• Control Type: Normally Closed, Modulating Control with 0 to 10 VDC or 4 to 20 mA
