Siemens 285-06170 Globe Valve Assembly 3-Way (2-1/2 in)

SIEMENS
Brand: SIEMENS
SKU: 285-06170
Availability: In Stock

Ships via freight in 1-3 business days
$2,320.04
$2,320.04
LTL Delivery

This product weighs 60 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

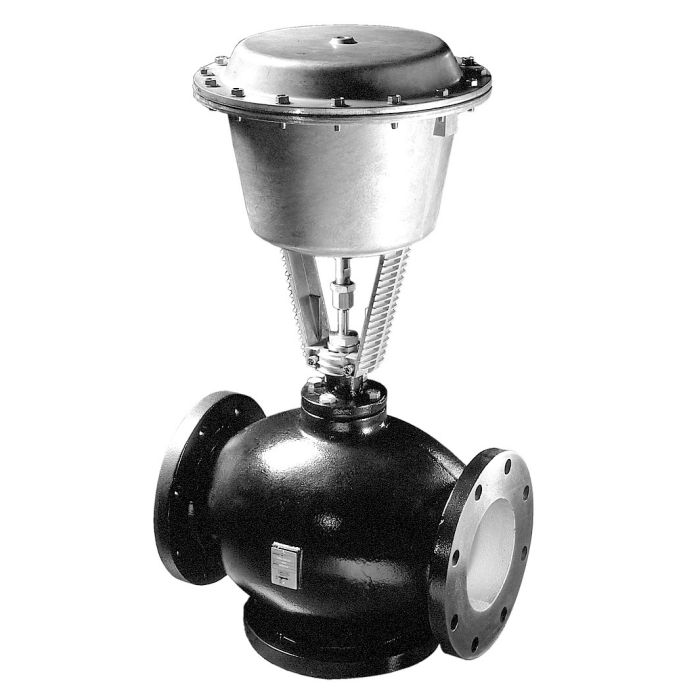

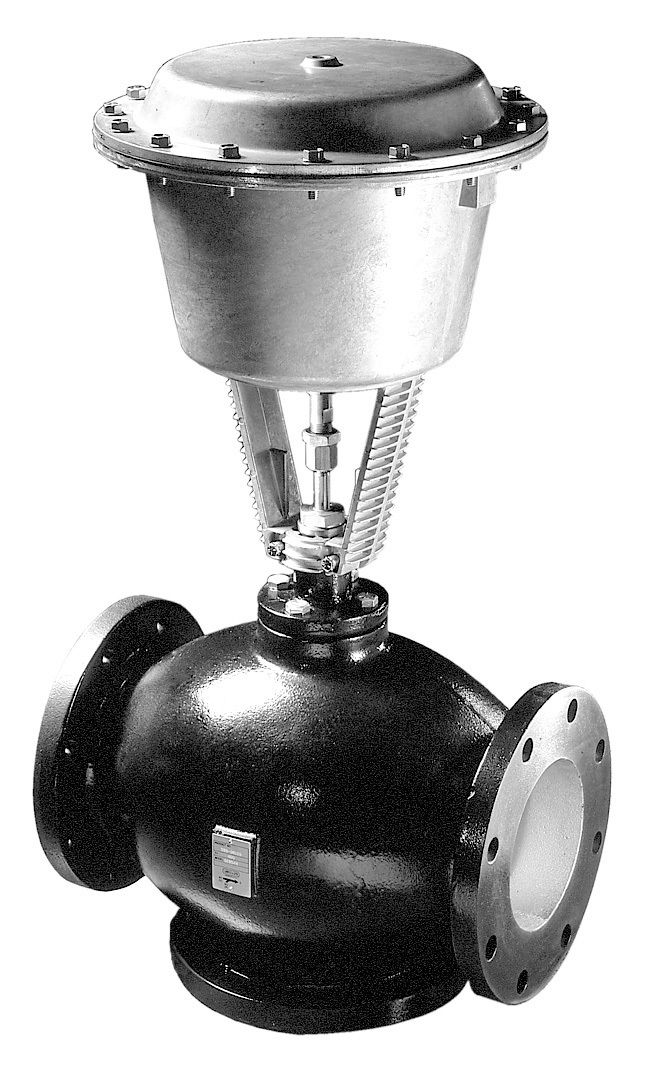

Siemens 285-06170 is a 3-way flanged globe valve assembly with a pneumatic actuator and factory-mounted positioner for modulating control of water and glycol solutions. The 2-1/2 inch valve is rated at 63 Cv, features bronze trim, a 3/4 inch (20 mm) stroke, and a 12 inch pneumatic actuator with a 3 to 8 psi spring range and 1/4 inch NPT air connection. Operating range is 20 F to 250 F (-7 C to 120 C).

  • 3-way flanged globe valve, 2-1/2 in, 63 Cv with bronze trim
  • Pneumatic actuator (12 in) with factory-mounted positioner, 3 to 8 psi spring range, 3/4 in (20 mm) stroke
  • Flow characteristic: equal percentage (NC port) and linear (NO port); close-off pressure 114 psi; suitable for water and glycol up to 50%

Product Highlights

Flanged 3-way globe valve assembly with pneumatic spring-return actuator, factory-mounted positioner, 63 Cv, bronze trim, 2-1/2 in size.

Product Information

Standard Information

  • Brand: SIEMENS
  • Manufacturer Part Number: 285-06170
  • Country of Origin: Unknown
Technical Specifications
Brand
Siemens
MPN
285-06170
Product Type
Globe valve assembly, 3-way (mixing)
Valve Size
2-1/2 in
Flow Coefficient (Cv)
63
Trim Material
Bronze
Body Material
Cast iron (ASTM A126 Class B)
End Connection
Flanged
Actuator Type
Pneumatic (spring-return)
Actuator Size
12 in
Actuator Air Pressure / Spring Range
3 to 8 psi
Stroke
3/4 in (20 mm)
Air Connection
1/4 in NPT
Positioner
Factory-mounted positioner included
Flow Characteristic
Equal percentage (NC port) and linear (NO port)
Service / Medium
Water; water with antifreeze/glycol solutions up to 50%
Operating Temperature
20 F to 250 F (-7 C to 120 C)
Close-Off Pressure
114 psi
Max Recommended Differential Pressure (modulating)
50 psi
Max Inlet Pressure Absolute (liquid)
400 psi
Leakage Rate
Class IV (0.01% of Cv)
Rangeability
100:1
Standards / Class
ANSI Class 250
Port Configuration
3-way mixing
Fail-Safe
Spring return; fail-safe position A - AB closed
