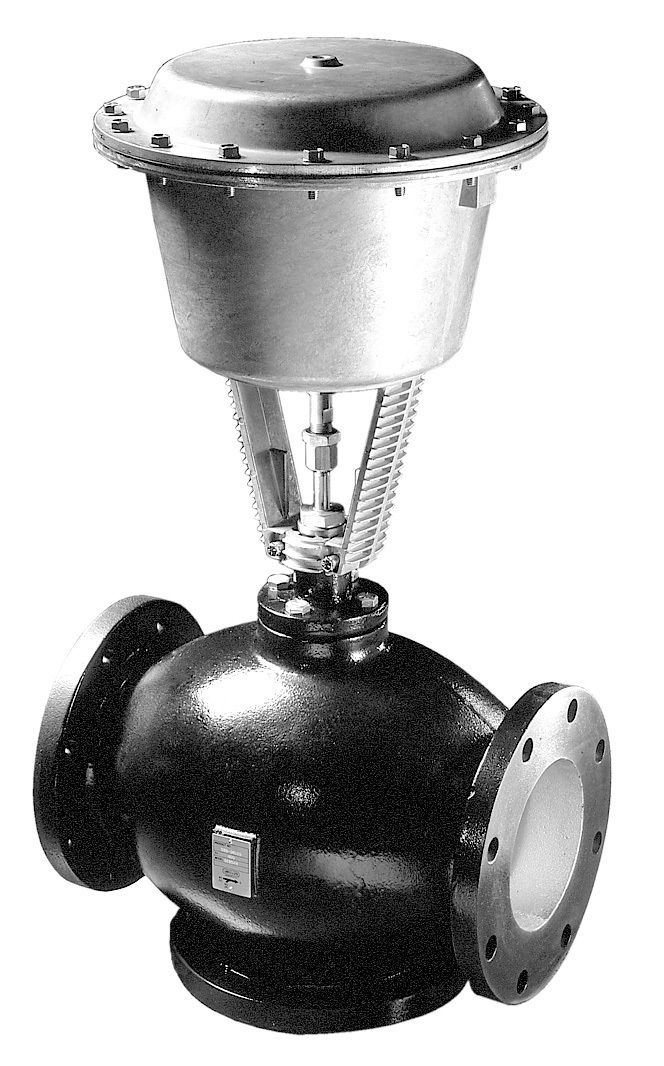

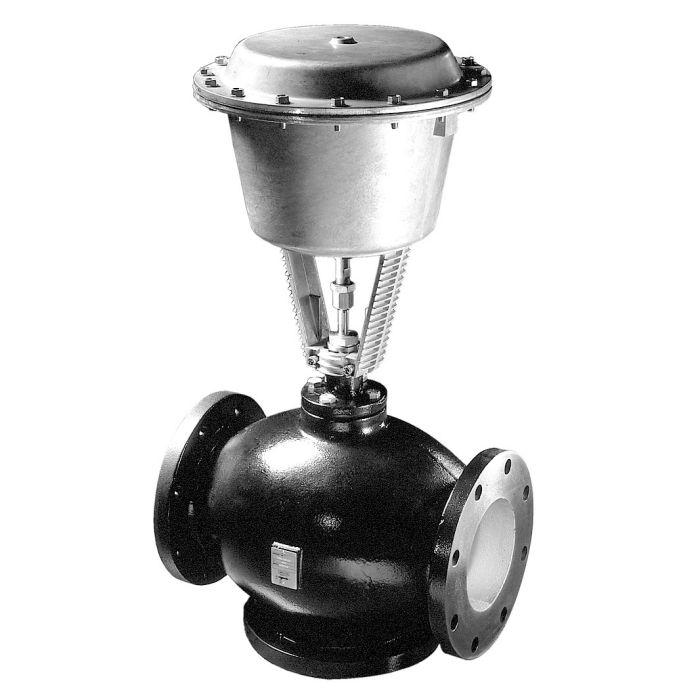

Siemens 285-06130 Globe Valve Assembly, 2 Way, 2-1/2 in.

Product Description

The Siemens 285-06130 is a globe valve assembly designed for pneumatic control applications. It features a flanged design with a flow characteristic that is linear. This valve is suitable for use with saturated steam, water, and glycol solutions up to fifty percent concentration.

• Compact size of two and a half inches.
• Integrated positioner for precise control.
• Close-off pressure rated at one hundred fourteen psi.

Product Highlights

This valve assembly provides reliable performance in various operational conditions. The sturdy stainless steel trim enhances durability while maintaining efficient functionality.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 285-06130

Technical Specifications

• Operating Conditions: 337 F (170 C)
• Flow Characteristic: Linear
• Mounting Type: NEMA 1
• Close-Off Pressure: 114 psi
• Service: Saturated Steam, Water, Glycol Solutions To 50%
• Stroke: 3/4 in.
• Air Connection: 1/4 in. NPT Barbed Fitting
• Pressure Range: 3 To 8 psi
