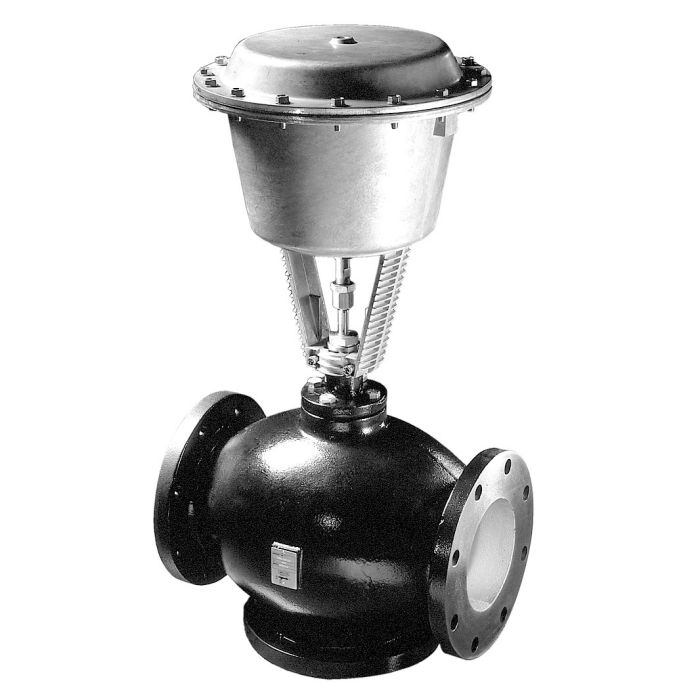

Siemens 285-06051 Globe Valve Assembly, 2 Way, 3 in.

Product Description

Siemens Globe Valve Assembly, MPN 285-06051, is a two-way valve. It is designed for pneumatic control applications. This valve is flanged and features a stainless steel trim. It works with a pneumatic valve actuator that has a stroke of three-quarters of an inch. The operating pressure range is between three to eight psi, making it suitable for various control applications.

• ANSI Class 125 compliant
• Includes factory mounted positioner
• Normally closed valve design

Product Highlights

This globe valve assembly is ideal for use with saturated steam, water, and glycol solutions up to fifty percent concentration. It provides reliable performance in demanding heating and cooling systems.

Product Information

Standard Information

• Service: Saturated Steam, Water, Glycol Solutions To 50%
• Mounting Type: NEMA 1

Technical Specifications

• Close-Off Pressure: 74 psi
• Flow Characteristic: Linear
• Operating Conditions: 337 F (170 C)
