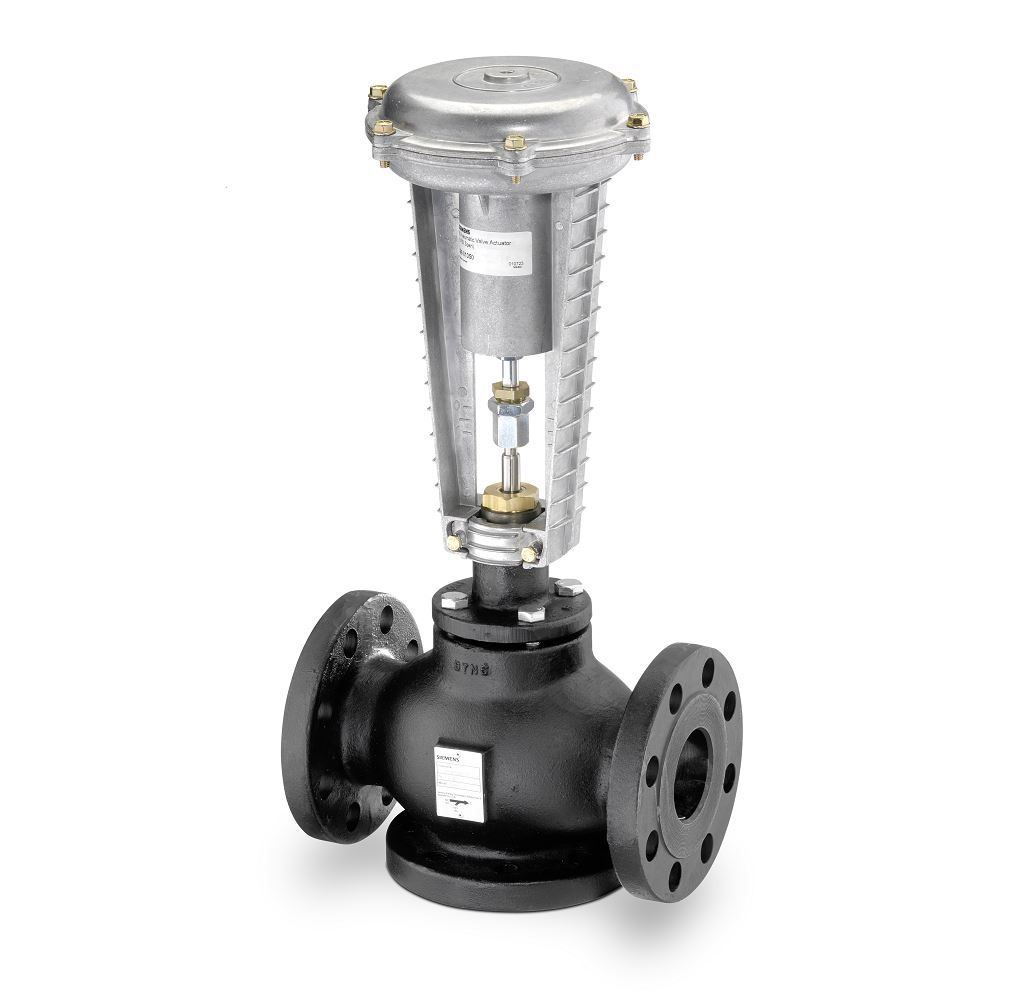

Siemens 283-06165 Globe Valve Assembly, 3 Way, 2-1/2 in.

Product Description

The Siemens Globe Valve Assembly, MPN 283-06165, is designed for precise flow control in pneumatic systems. This three-way valve is made with stainless steel trim and has a flange connection. It features a flow characteristic that is equal percentage for the normally closed port and linear for the normally open port. The valve operates in temperatures ranging from 20 degrees Fahrenheit to 250 degrees Fahrenheit.

• ANSI Class 125 rated
• Includes factory mounted positioner
• Handles water and glycol solutions up to fifty percent

Product Highlights

This valve assembly is suited for HVAC applications, allowing for effective management of water and glycol solutions. It also includes an air connection with a quarter-inch NPT for easy integration with existing systems.

Product Information

Standard Information

• Min Order Qty: 1
• Brand: Siemens

Technical Specifications

• Service: Water, Glycol Solutions To 50%
• Mounting Type: NEMA 1
• Close-Off Pressure: 36 psi
• Flow Characteristic: Equal Percentage (NC Port) And Linear (NO Port)
• Operating Conditions: 20 F To 250 F (-7 C To 120 C)
