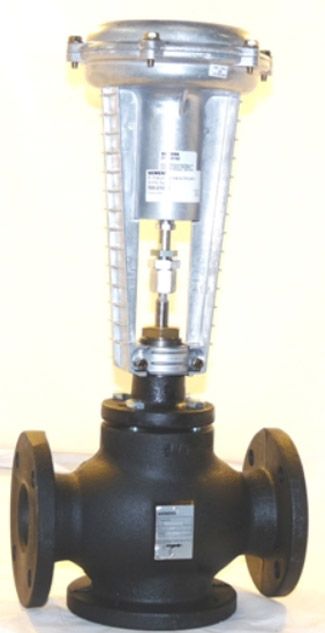

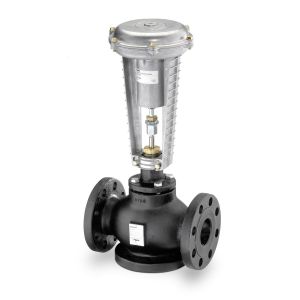

Siemens 283-06161 Globe Valve Assembly, 3 Way, 3 in.

Product Description

The Siemens 283-06161 is a globe valve assembly designed for controlling water flow in pneumatic systems. This three-way valve has a three-inch flanged connection and is suitable for various applications, including heating and cooling systems. It efficiently manages the mixing of water and glycol solutions up to fifty percent concentration.

• Three-way design for optimal flow control
• Flanged connection for easy installation
• Compatible with pneumatic actuators

Product Highlights

This valve provides excellent performance in a wide range of operational conditions.

Product Information

Standard Information

• Brand: Siemens
• Model: 599

Technical Specifications

• MPN: 283-06161
• Valve Size: 3 inches
• Piping Configuration: 3-Way
• Body Material: Bronze
• Max Pressure: 125 psi WOG
• Weight: 130 pounds
• Flow Characteristic: Equal Percentage (NC Port) and Linear (NO Port)
• Operating Conditions: 20°F to 250°F (-7°C to 120°C)
• Service: Water, Glycol Solutions Up to 50%
• Close-Off Pressure: 23 psi
• Mounting Type: NEMA 1
